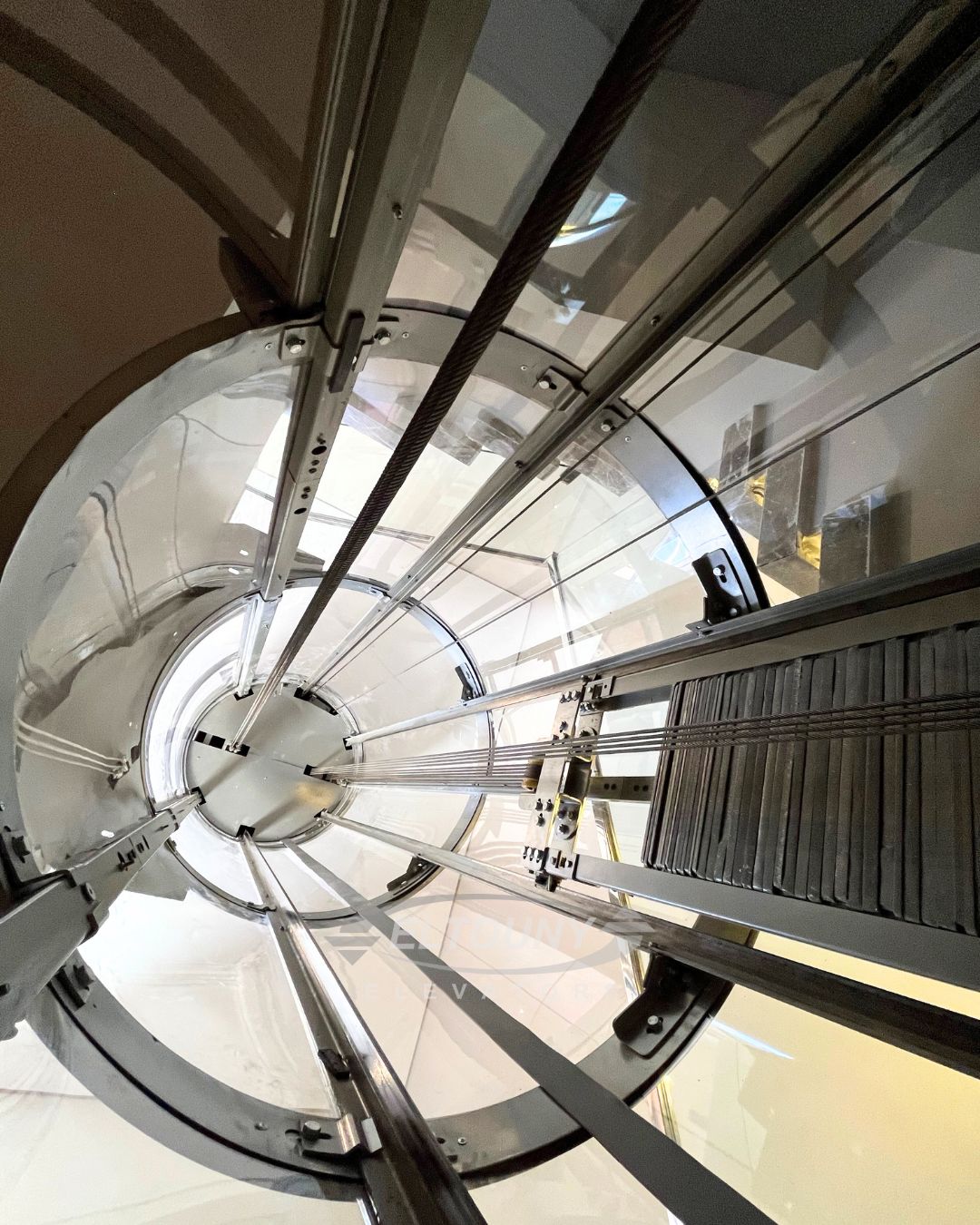

MINI & MINI+ HOME LIFTS
- The MINI & MINI + features a gearless heavy-duty home lift, designed for long-term performance, serving up to 4 floors.
- The MINI+ version is also available for outdoor installation and can accommodate a wheelchair.
- Assembled locally by Eltouny Elevators, combining international electrical components with Eltouny’s trusted quality and finishing.
GENERAL FEATURES
- Gearless Drive (German | Italian)
- Speed: up to 0.5 m/s
- Travel up to 10 m
- Up to 4 Floors (G-1-2-3)
- Pit: 200 mm
- Headroom: 2800 mm
- Power: 3 Phases – 380 V
- Standard Colors:Black – White – Beige – Grey
Customizable
Safety FEATURES
- Battery Backups
- Overload Sensor
- Manual lowering
- Overspeed Governor
- Safety Breaks
- Door Lock
- Photocell Sensors
- Pit run/stop switch
- Emergency stop switch
MINI+ HOME LIFTS Only
- Outdoor Application
- Wheelchair Accessible

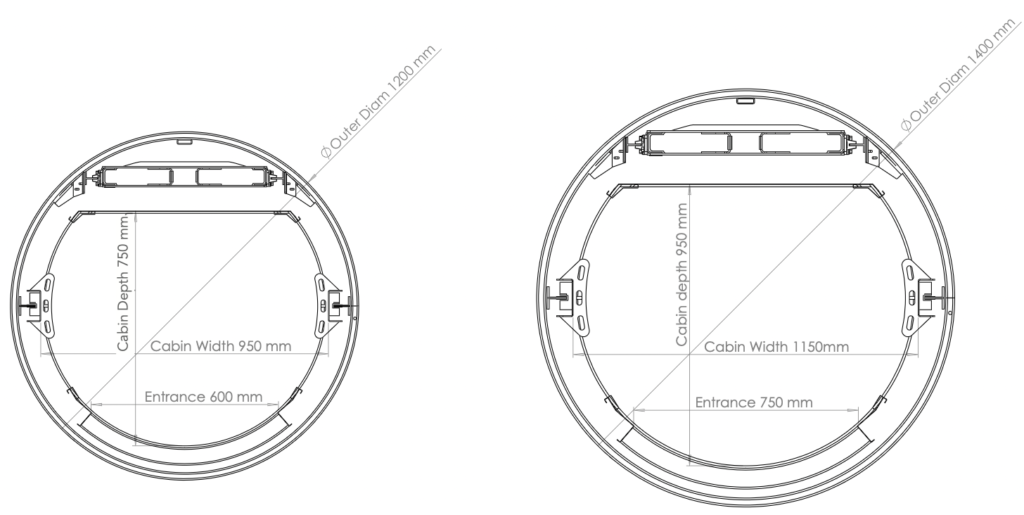

MINI 120
- Load : 240 kg
- Cabin : 950 mm x 750 mm
- Shaft : ⌀ 1200 mm
- Structural Dim. : ⌀ 1250 mm
- Door : 600 mm
MINI 140
- Load : 300 kg
- Cabin : 1150 mm x 950 mm
- Shaft : ⌀ 1400 mm
- Structural Dim. : ⌀ 1450 mm
- Door : 750 mm

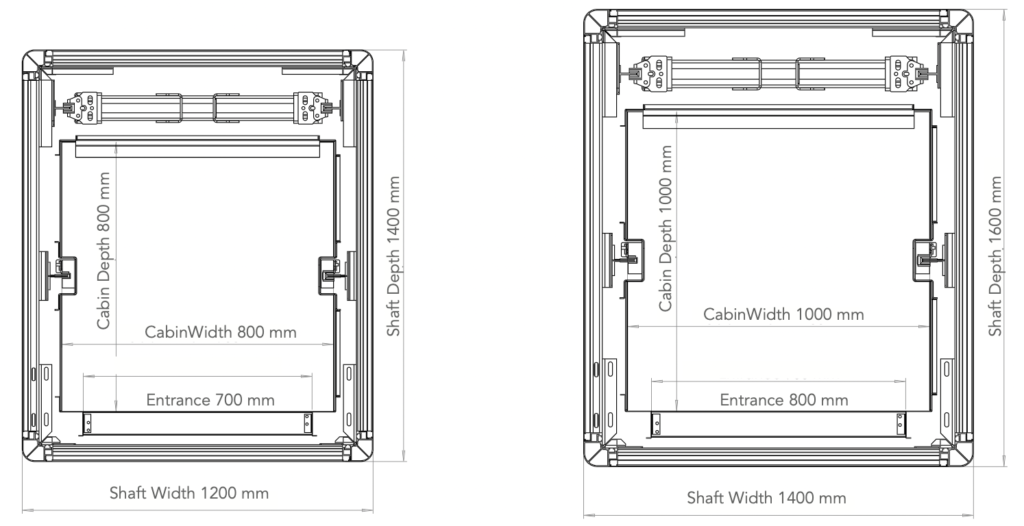

MINI+ COMPACT
- Load : 240 kg
- Cabin : 800 mm x 800 mm
- Shaft : 1200 mm x 1400 mm
- Structural Dim.: 1250 mm x 1450 mm
- Door : 700 mm
MINI+ ELITE
- Load : 300 kg
- Cabin : 1000 mm x 1000 mm
- Shaft : 1400 mm x 1600 mm
- Structural Dim.: 1450 mm x 1650 mm
- Door : 700 mm
- Wheelchair Accessible
- Gearless Drive
- Heavy Duty
- Round | Square Options
- Outdoors Appliaction ( MINI+)
- Wheelchair Accessible (MINI+)
Talk to Our Lift Experts
Every home deserves a lift designed around it. Our specialists will help you select the perfect solution—tailored to your space, architecture, and lifestyle—ensuring exceptional comfort, safety, and design from start to finish.
