ECO & ECO+ & EDGY Home Lifts
- The ECO, ECO+ & EDGY features a dual-roped winding drum system offering reliable performance. They serve up to 3 floors, making them ideal for small to medium-sized homes.
- Available in round, square, octagonal designs.
- Assembled locally by Eltouny Elevators, combining international electrical components with Eltouny’s trusted manufacturing quality and finishing.
General Features
- Dual-Roped Winding Drum
- Speed: up to 0.3 m/s
- Travel up to 7 m
- Up to 3 Floors (G-1-2)
- Pit: 120 mm
- Headroom: Head Unit: 3000 mm | Split Unit : 2800 mm
- Power:Single Phase – 220 V or 3 Phases – 380 V
Safety Features
- Battery Backups
- Overload Sensor
- Manual lowering
- Overspeed Governor
- Safety Breaks
- Door Lock
- Photocell Sensors
- Pit run/stop switch
- Emergency stop switch
Design & Application
- Standard Colors: Black – White – Beige – Grey
- Customizable
- Indoors Only
- Wheelchair Accessible

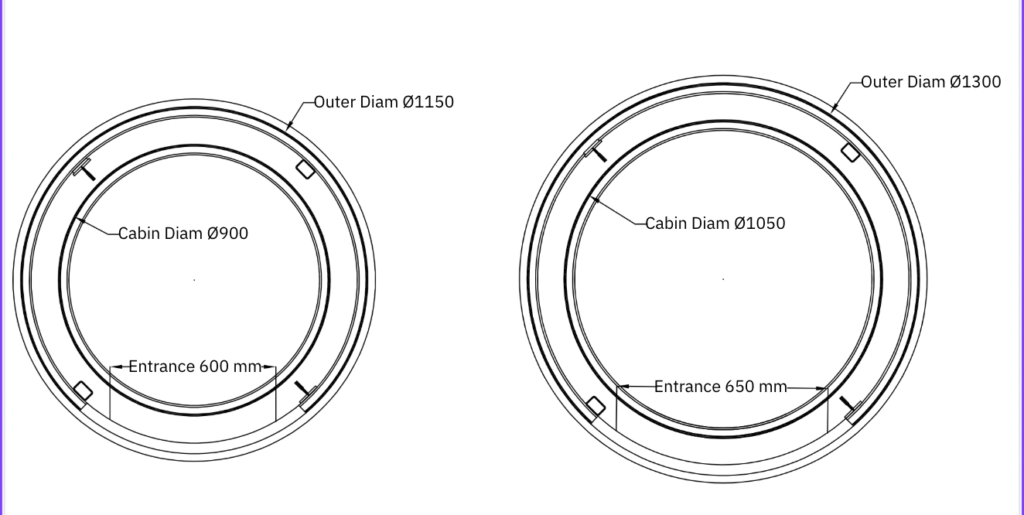

ECO 115
- Load : 160 kg
- Cabin : ⌀ 900 mm
- Shaft : ⌀ 1150 mm
- Structural Dim. : ⌀ 1200 mm
- Door : 600 mm
ECO 130
- Load : 240 kg
- Cabin : ⌀ 1050 mm
- Shaft : ⌀ 1300 mm
- Structural Dim. : ⌀ 1350 mm
- Door : 650 mm

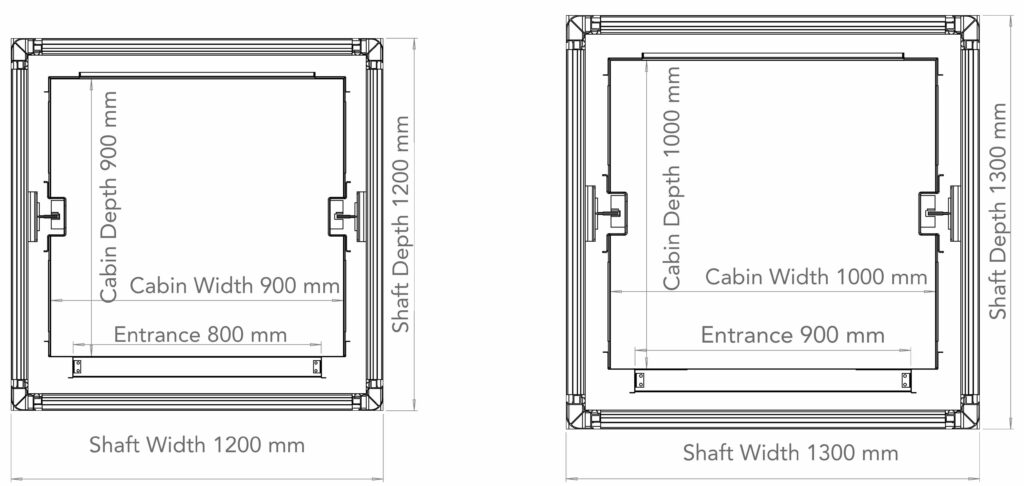

ECO+ 120
- Load : 160 kg
- Cabin : 900 mm x 900 mm
- Shaft : 1200 mm x 1200 mm
- Structural Dim.: 1250 mm x 1250 mm
- Door : 800 mm | Wheelchair Accessible
ECO+130
- Load : 160 kg
- Cabin : 1000 mm x 1000 mm
- Shaft : 1300 mm x 1300 mm
- Structural Dim.: 1350 mm x 1350 mm
- Door : 900 mm | Wheelchair Accessible

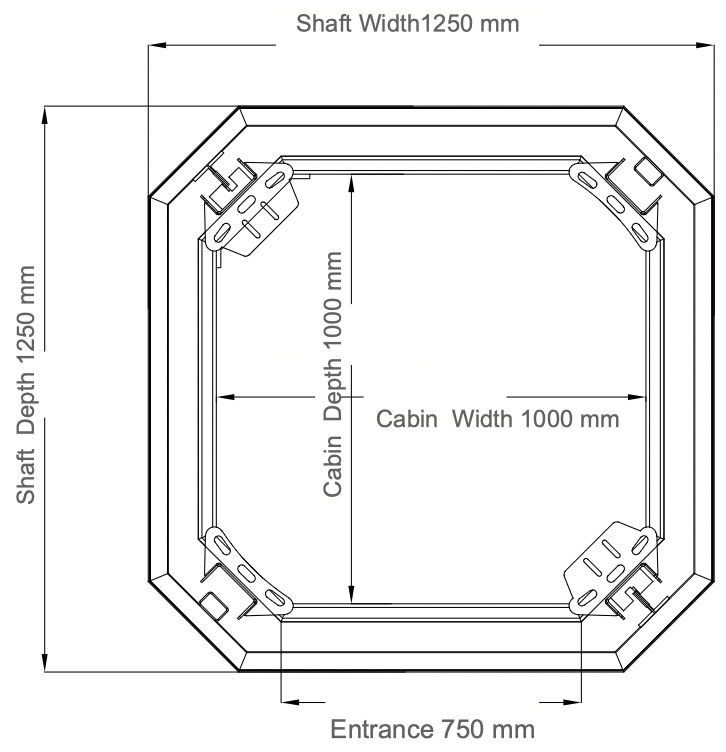

EDGY
- Load : 240 kg
- Cabin : 1000 mm x 1000 mm
- Shaft : 1250 mm x1250 mm
- Structural Dim.:1300 mm x 1300 mm
- Door : 750 mm
- Wheelchair Accessible
