ASCENDA Home Lift
Ready-made, all-inclusive concept with a shaftless, pitless and machine room less design that requires less building work than conventional elevators.
Technical Information
- Installation:Indoor
- Rated load:350 kg
- Power supply:Either 1 x 230 VAC +/- 10%, 32 A, 50/60Hz, min. 3 x 4,0 mm² (main and auxiliary circuits), or 1 x 230 VAC +/- 10%, 16 A, 50/60Hz, min. 3 x 2,5 mm² (main circuit) + 1 x 230 VAC +/- 10%, 16 A, 50/60Hz, min. 3 x 2,5 mm² (auxiliary circuit)
- Speed:0.13 m/s
- Min headroom:2300 mm
- Lift pit:0 mm
- Drive system:Screw and nut
- Max travel:4270 mm
- Max number of stops:2
- Lift controls:Hold-to-run operation both to call the lift and to travel. All lift sizes come with a vertical control panel and two wireless remote controls for the landings. Lift sizes M-XL also include handrail controls.
- Motor Power:2.9 kW
- Machine room:Machine room less (MRL), electrical cabinet, fitted to the mast (left/right) on the ground floor or remote (<3m)
- Door configuration:Single entry (S, M, L, XL), open-through (XL)
- Directives and standards:MD 2006/42/EC and applicable parts of EN 81-41:2024
Lift sizes
Lift sizes & floor cut out information | |||
|---|---|---|---|
Cabin size – W x D mm | Cut out size – W x D mm | ||
S – 600 x 700 | 1132 x 930 | ||
M – 800 x 700 | 1332 x 930 | ||
L – 1000 x 700 | 1532 x 930 | ||
XL – 850 x 1250 4 Passengers (Wheelchair User) | 1375 x 1496 | ||
SAFETY & COMFORT
Emergency lowering
In case of a power outage, this feature enables you to emergency lower and exit the lift without outside assistance.
Responsive safety plate
If the lift car encounters an obstacle on its way down, the safety plate sensors bring the lift to an instant halt.
Optimised drive system
Encased in a mast of high-quality safety glass, our screw-driven system is both whisper quiet and energy-efficient.

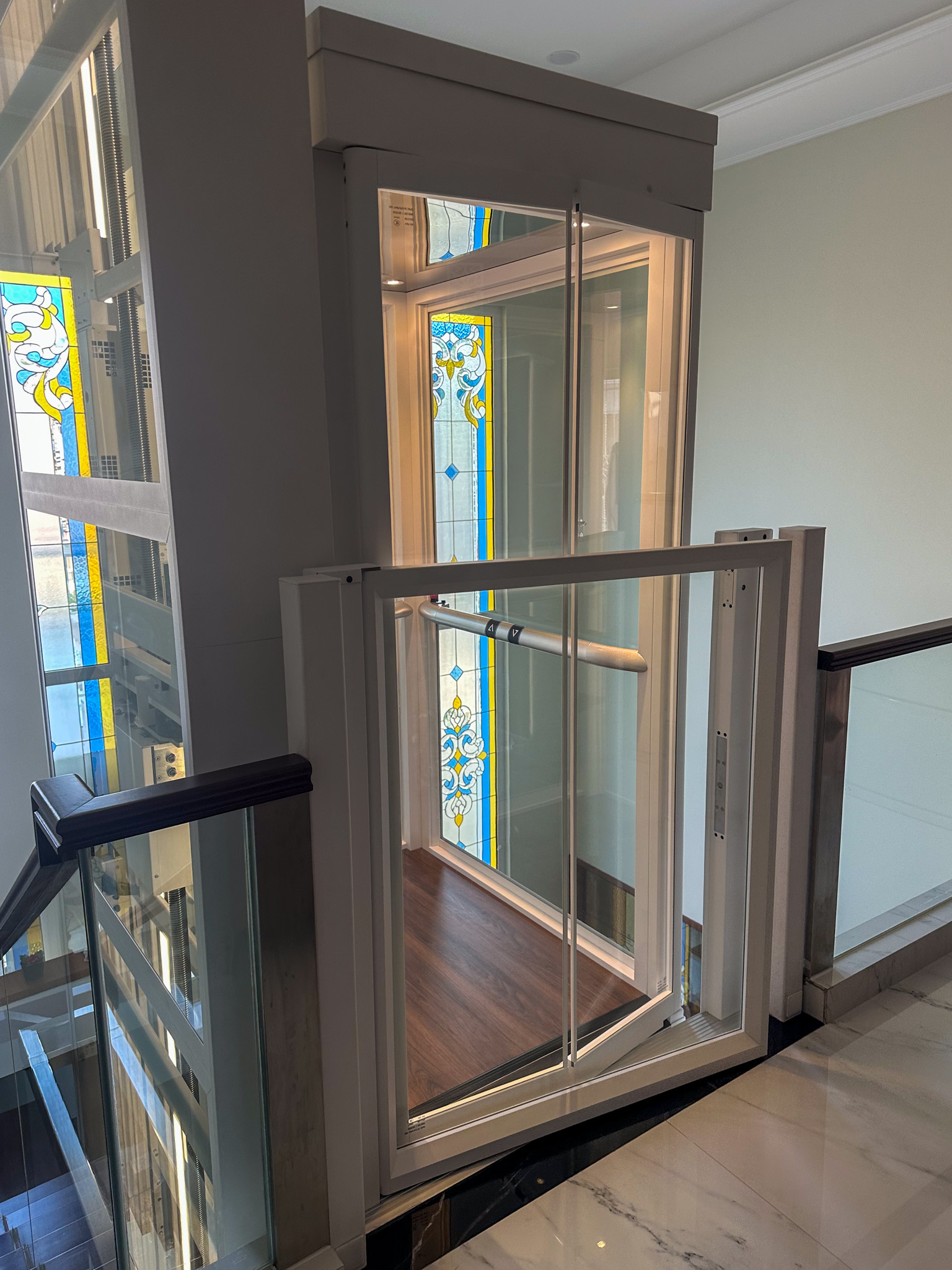

Smart safety hatch
To secure the floor opening, the safety hatch automatically opens as the lift goes up and closes as the lift goes down.

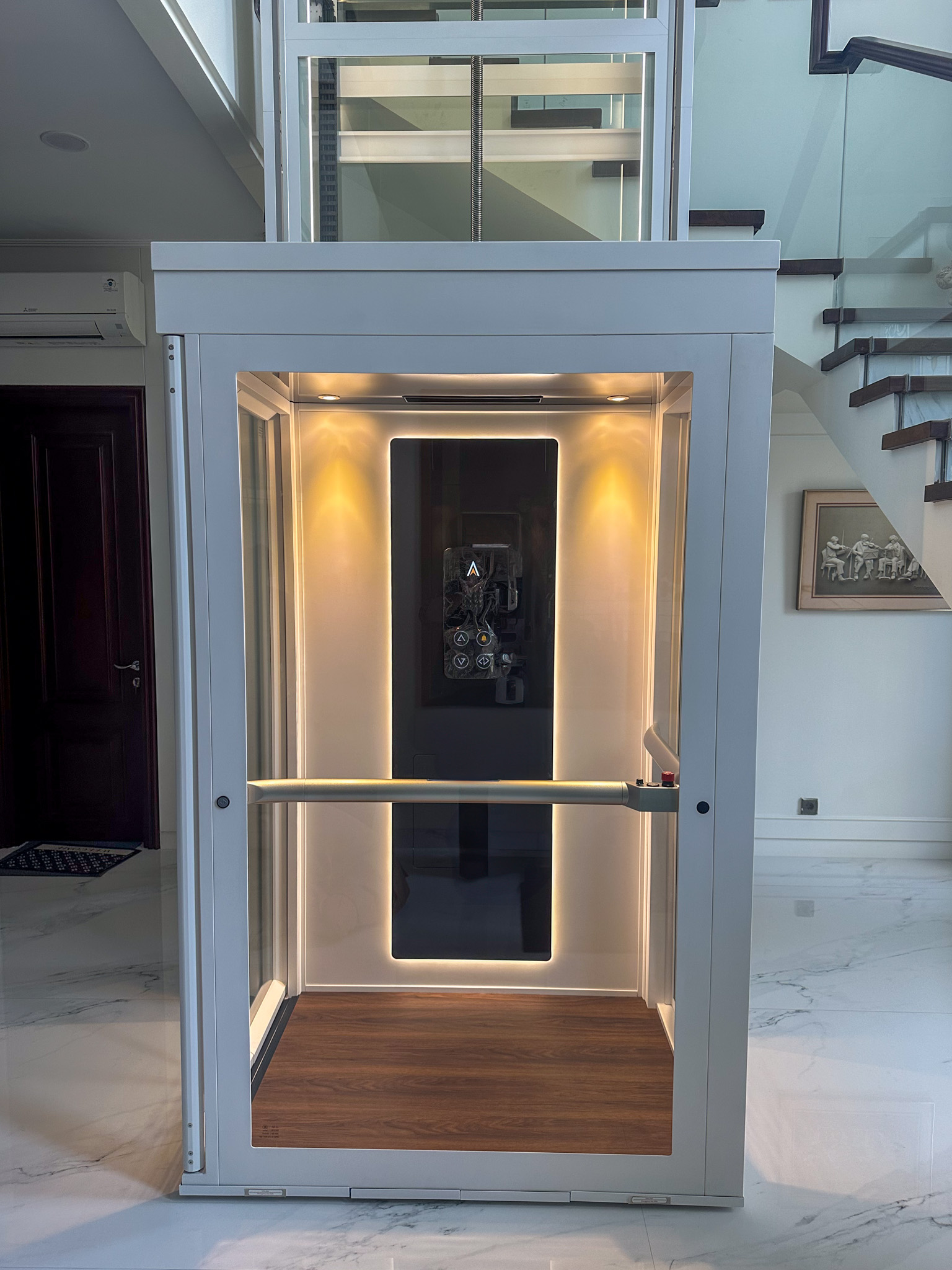

Ergonomic lift car
The elegant lift car is equipped with a vertical control panel as well as intuitive handrail controls to offer you comfortable operation both standing and seated.
The lift works with hold-to-run to ensure that you are always in control:
- Maintain pressure on the button to travel
- Release pressure on the button to stop
Robust drive system
Unlike other through-the-floor lifts, Cibes Ascenda is screw-driven. Cibes screw and nut drive is very safe and reliable and has a long lifespan – up to 25-30 years with proper maintenance. Another advantage of screw-driven lifts is that they require less maintenance than hydraulic or belt-driven lifts, for example.
Door options
Sizes S to L are always delivered with one single door facing the vertical control panel, but the XL size offers your more options:
Door options for the XL size of Cibes Ascenda
- One door placed on the right side of the control panel
- One door placed on the left side of the control panel
- Two doors placed on both sides of the control panel (see picture)
The option where two doors are placed on both sides of the control panel is also called open-through access. Open-through access makes entering and exiting the lift very easy and is particularly convenient for passengers using a walker or a wheelchair.
Electrical cabinet
Depending on what suits your home best, the electrical cabinet of Cibes Ascenda can be placed either on the left-hand or the right-hand side of the mast on the bottom floor.
The electrical cabinet can also be placed away from the lift, at a distance of maximum 3 meters (remote electrical cabinet).

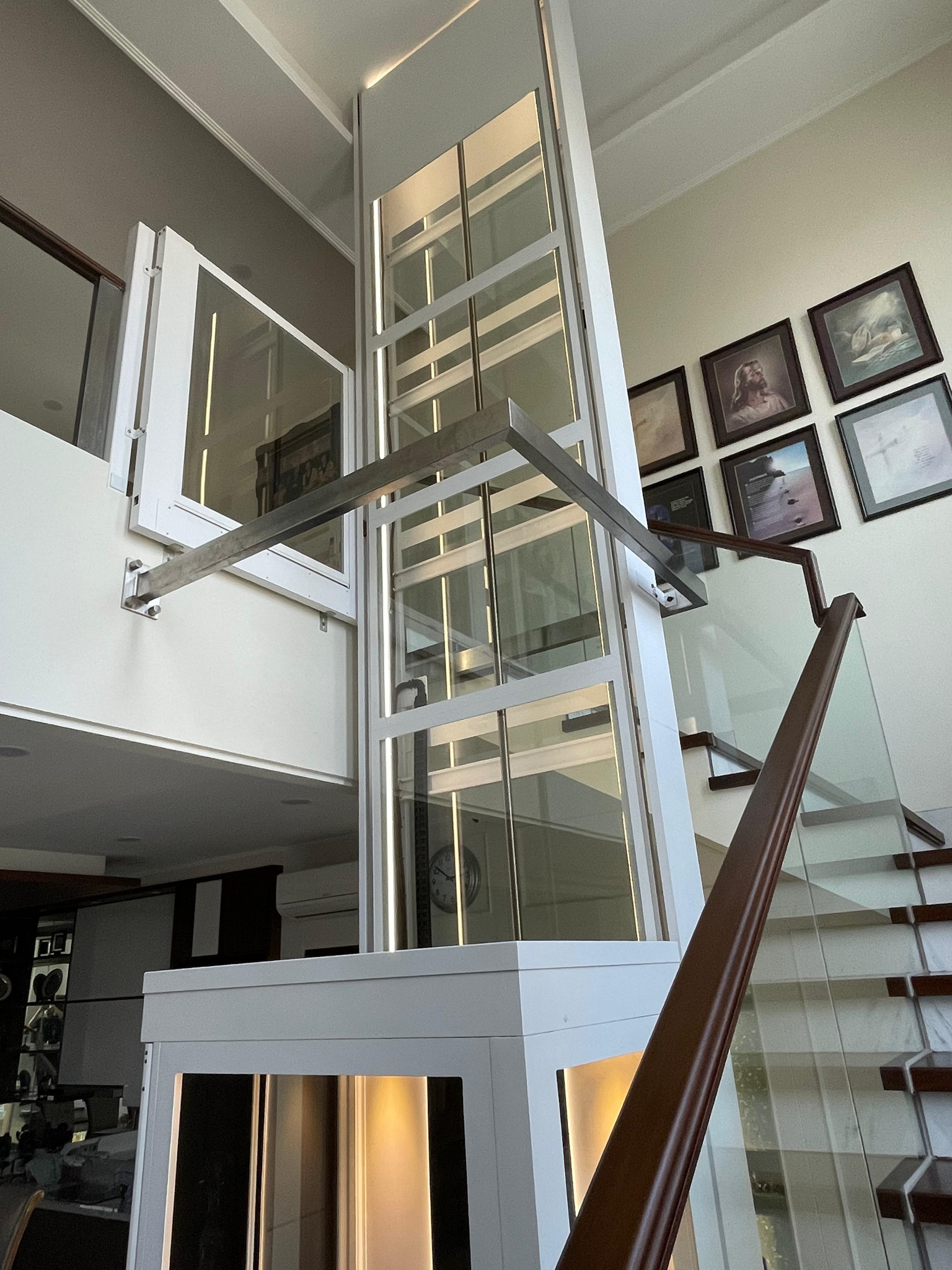

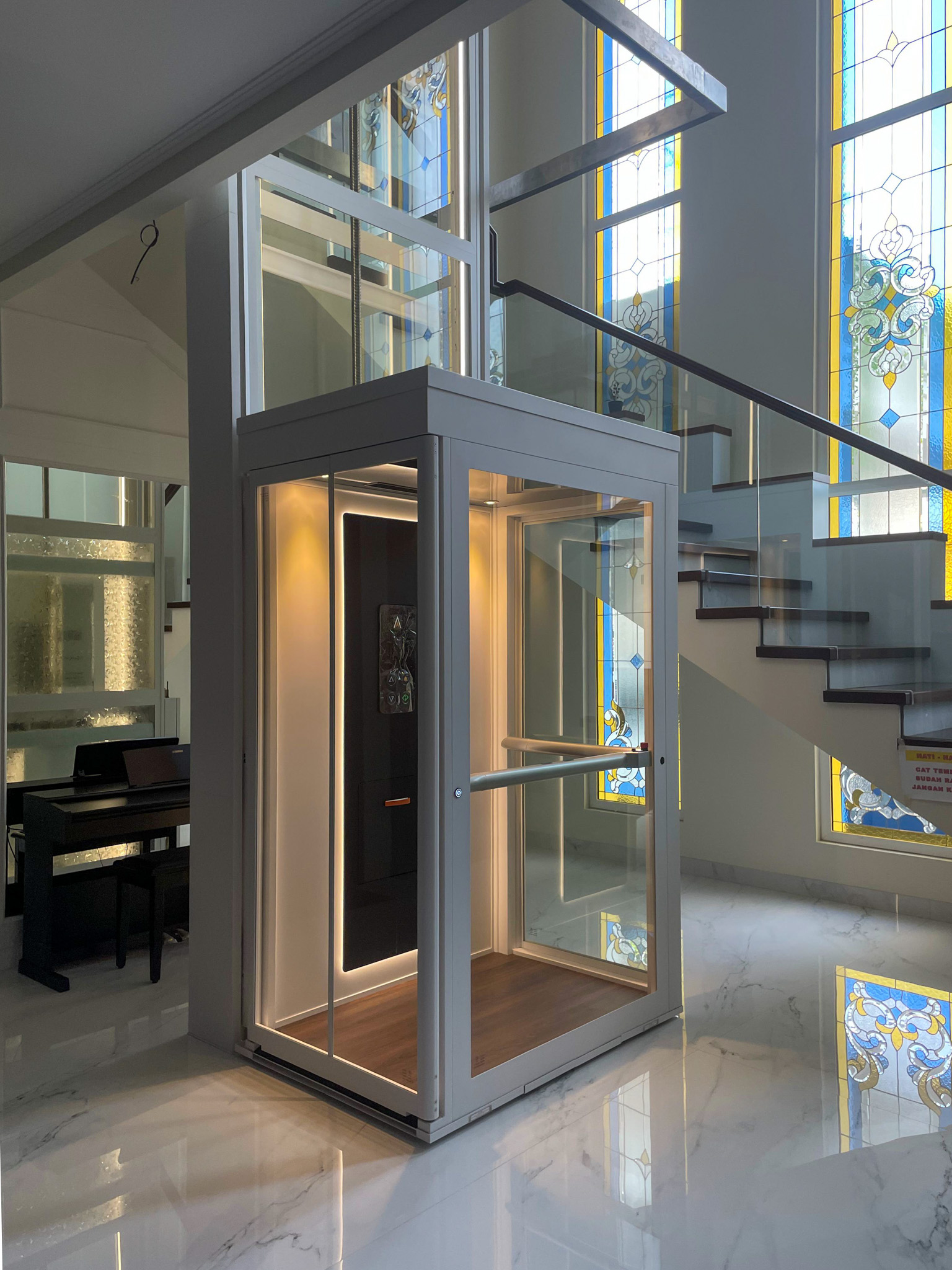

Elegant & durable design
The lift car, doors and mast of Cibes Ascenda are delivered in high-quality safety glass to give your lift a light and airy look that is resistant to wear and tear. In addition, the lift features stylish and durable LED lighting that makes your lift look absolutely spectacular, especially at nighttime.

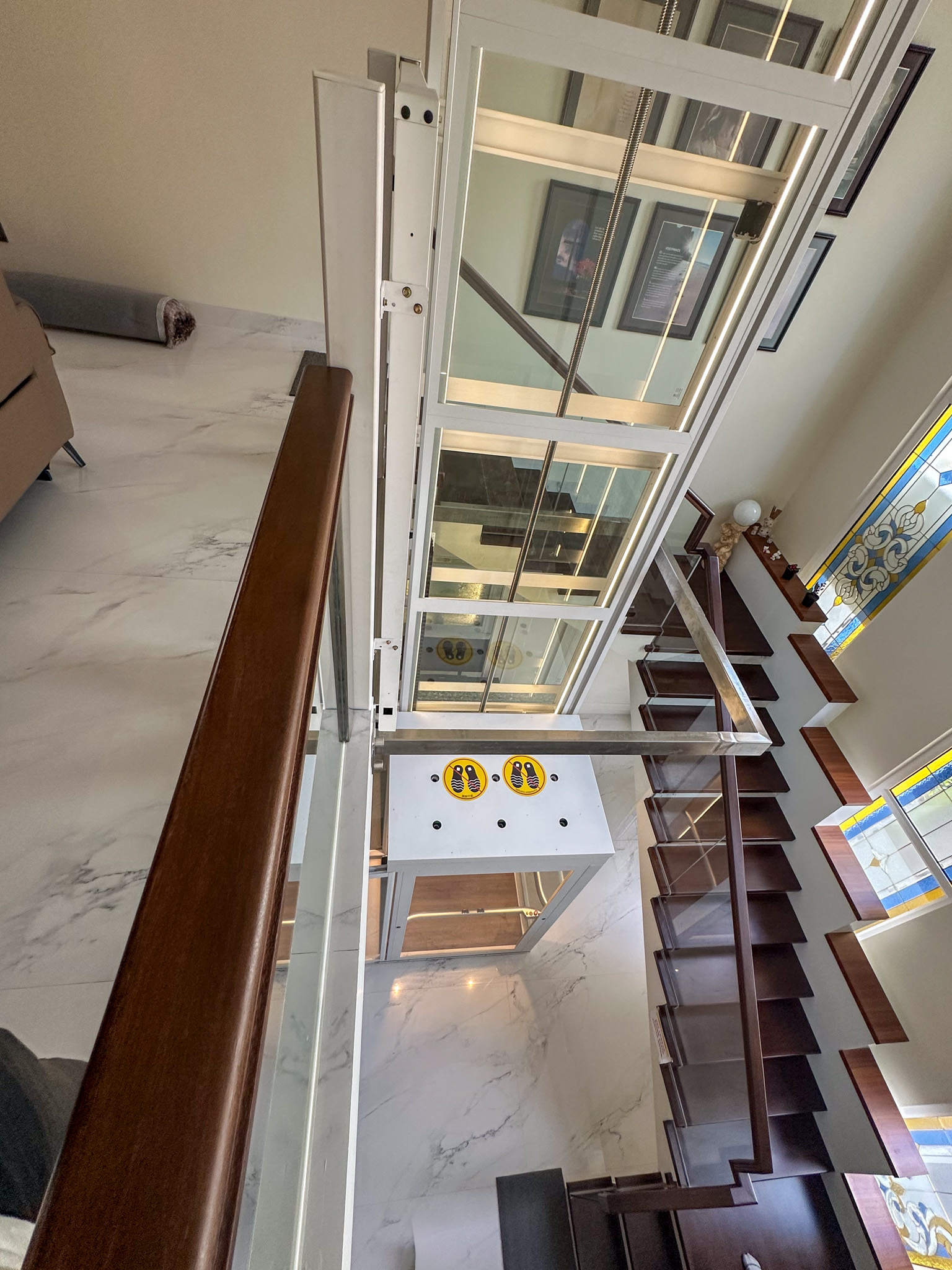

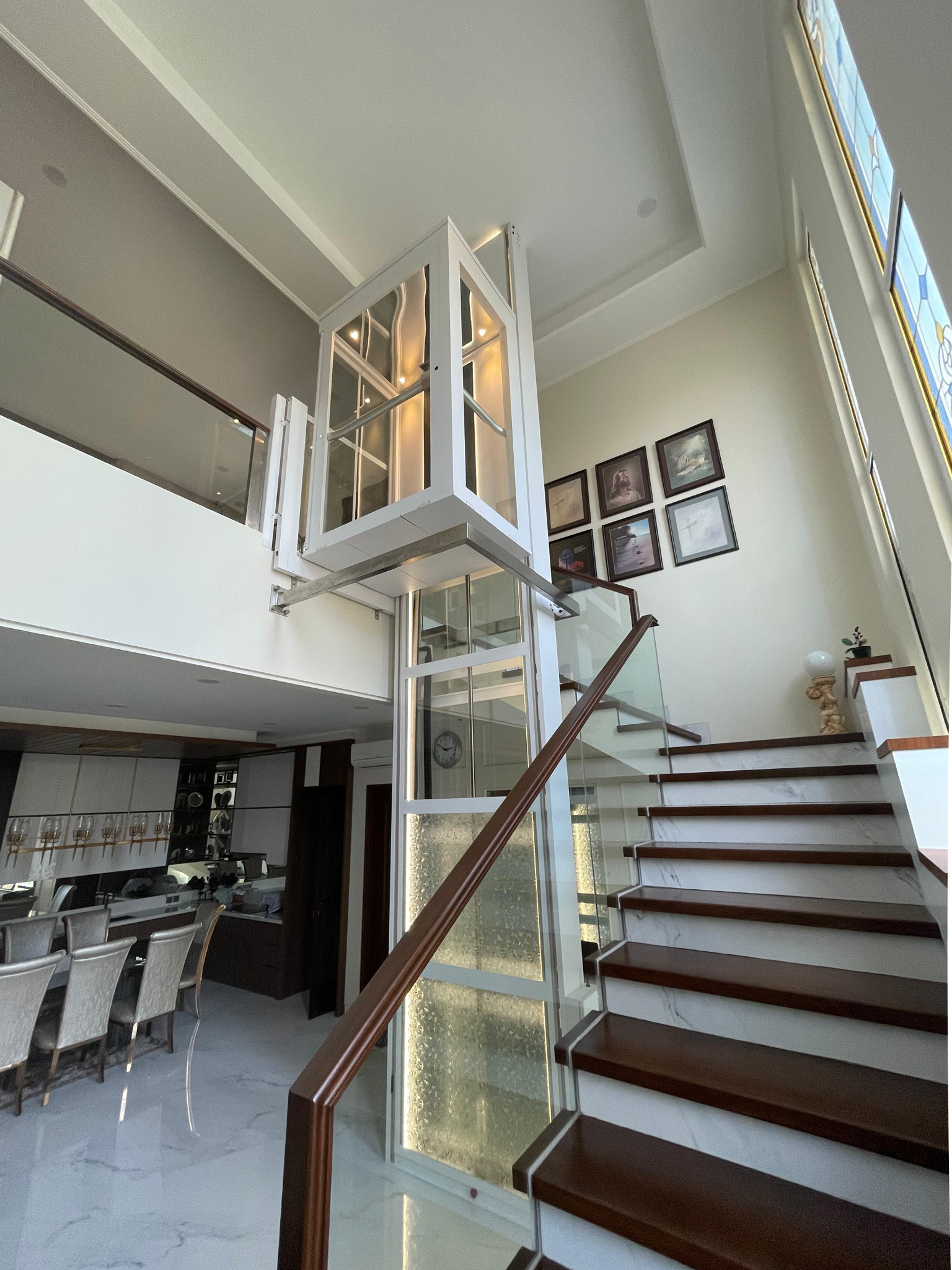

Living space without limits
Thanks to its smart, shaftless design, Cibes Ascenda only takes up room on one floor at a time:
- When the lift car goes up, it frees up space on the bottom landing.
- When the lift car goes down, it frees up space on the top landing.
A compact and flexible solution that offers you living space without limits.
Award winning design
Not many home lifts can claim to have an award winning design but Cibes Ascenda won the iF Design Award 2025 for its elegant and user-friendly product design. Learn more about why Cibes Ascenda won the prize!
PREMIUM STANDARDS
Ergonomic handrail controls
The elegant, ergonomic handrail controls* are easy to use both standing and seated and are also comfortable to operate for wheelchair users.

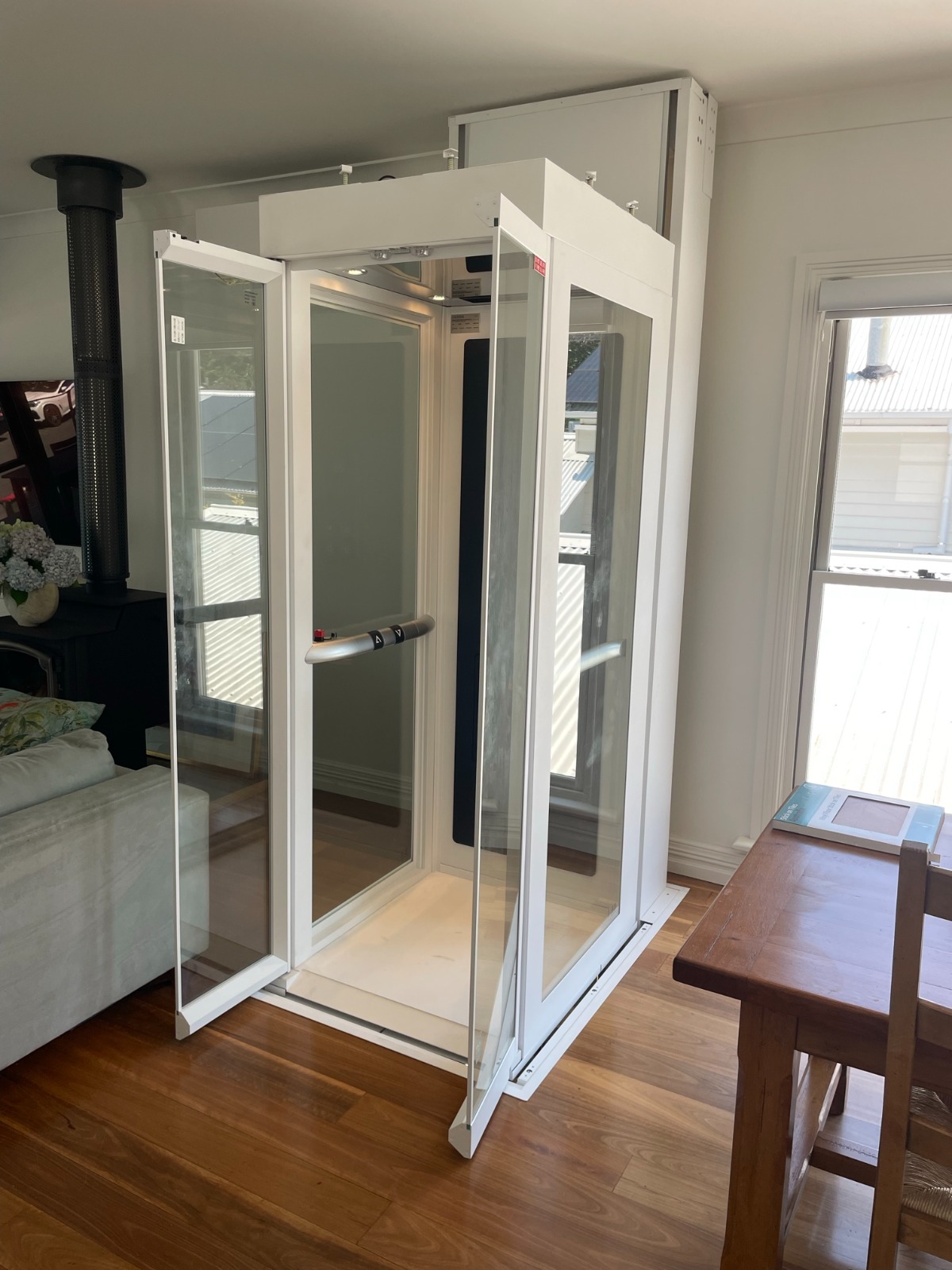

Elegant saloon doors
Cibes Ascenda is the only lift with saloon doors. Elegant and space-saving, the doors have concealed, automatic door openers as standard.*Standard on all lift sizes, except size S
Folding seat
The folding seat* is a great example of flexible comfort. Just fold the seat down when you need it and simply fold it up again when you have no more use for it.
Mirror ceiling & built-in fan
The mirror ceiling adds a futuristic touch and makes the lift car feel even more spacious. It also features a built-in fan to offer you a fresh breeze as you travel.
