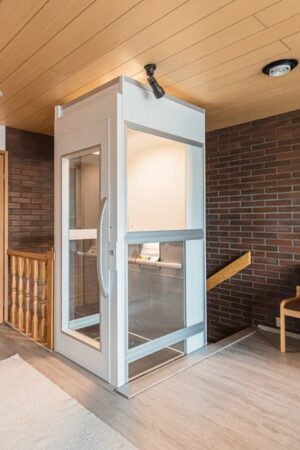

Cibes Ascenda offers you a unique blend of ergonomic elegance and high-quality materials that will enhance the beauty of your home. Discover a lift that is designed to optimize your living space, leaving you plenty of room for the life you love.
SPECIFICATIONS
- Load:350 kg
- 2 Floors Only (max travel 4270 mm)
- Indoors Only
- No Pit Needed
- Screw and nut drive system
- Color : Black | White
- Min headroom:2300 mm
- Lift controls:Hold-to-run operation both to call the lift and to travel. All lift sizes come with a vertical control panel and two wireless remote controls for the landings. Lift sizes M-XL also include handrail controls.
- Door configuration:Single entry (S, M, L, XL), open-through (XL)
- Fully Imported from Sweden
DIMENSIONS
| Cabin size – W x D mm | Cut out size – W x D mm |
|---|---|
| S – 600 x 700 1 Passenger |
1132 x 930 |
| M – 800 x 700 2 Passengers |
1332 x 930 |
| L – 1000 x 700 3 Passengers |
1532 x 930 |
| XL – 850 x 1250
4 Passengers (Wheelchair User) |
1375 x 1496 |
SAFETY FEATURES
-
Emergency Lowering
In case of a power outage, this feature enables you to emergency lower and exit the lift without outside assistance.
-
Optimized drive system
Encased in a mast of high-quality safety glass, our screw-driven system is both whisper quiet and energy-efficient.
-
Smart safety hatch
To secure the floor opening, the safety hatch automatically opens as the lift goes up and closes as the lift goes down.
PREMIUM STANDARDS
-
Folding seat
The folding seat* is a great example of flexible comfort. Just fold the seat down when you need it and simply fold it up again when you have no more use for it.
-
Elegant saloon doors
Cibes Ascenda is the only through-the-floor lift with saloon doors. Elegant and space-saving, the doors have concealed, automatic door openers as standard. *Standard on all lift sizes, except size S
-
Mirror ceiling & built-in fan
The mirror ceiling adds a futuristic touch and makes the lift car feel even more spacious. It also features a built-in fan to offer you a fresh breeze as you travel.
DOOR OPTIONS
Sizes S to L are always delivered with one single door facing the vertical control panel, but the XL size offers your more options:
Door options for the XL size of Cibes Ascenda
- One door placed on the right side of the control panel
- One door placed on the left side of the control panel
- Two doors placed on both sides of the control panel (see picture)
The option where two doors are placed on both sides of the control panel is also called open-through access. Open-through access makes entering and exiting the lift very easy and is particularly convenient for passengers using a walker or a wheelchair.
ORIGIN
- Fully imported from Sweden
DELIVERY AND INSTALLATION
- Delivery Duration: 10-11 weeks
- Installation Duration: 2-3 days
WARRANTY
- Warranty Period: 12 months
PRICING
- Price includes VAT tax.
- Price doesn’t include any construction work that may be required.
- Price includes installation fees.
- Price includes transportation fees within Cairo and Giza only.
PAYMENT TERMS
- 75% advance payment upon order confirmation
- 20% upon arrival of goods at the Egyptian port
- 5% upon completion of installation
