Air-Driven HOMELIFTS
Pneumatic Technology for Smooth, Space-Saving, Energy-Efficient Home Lifts

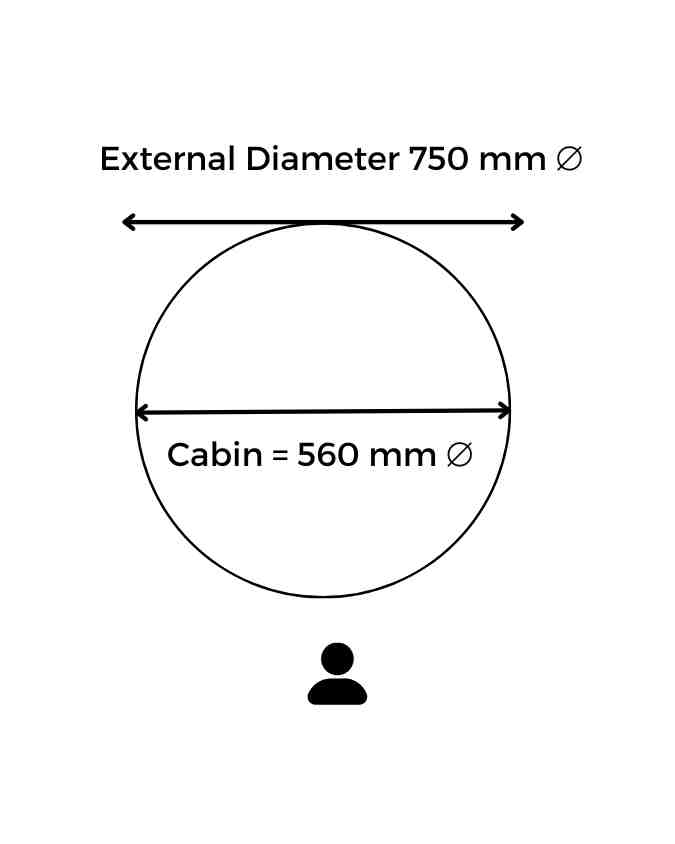

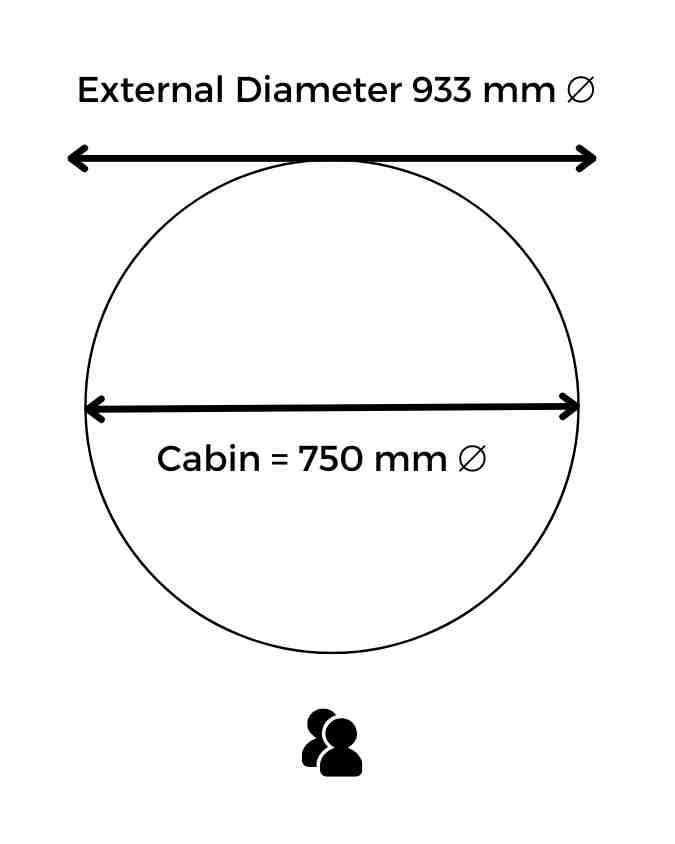

3 Sizes Available
1 – 3 Passengers / Wheelchair Accessible Model
Panoramic Design
360° Visibility
Self-Supporting Elevator
No Pre-Construction Pit, Hoist Way or Machine Room Required
Pneumatic Technology
Powered by the Most Abundant Resource in the World… AIR!
Fast Installation
2 – 3 Day Installation
PVE General Features
- Pneumatic vacuum technology
- No pit, hoist way, or machine room required
- Indoors Only
- 10m Total Rise Max
- 0.15 m/s traveling speed
- Two to Four Stops
- Headroom: Head Unit: 2720 mm | Split Unit: 2465 mm | Pump Box : 865 mm x 470 mm x 680 mm
- Internal cabin height: 2005mm
- Standard Color : White – Navy Grey
- Special Colors : Black – Light Grey – Taupe
- Foldable Car Seat : PVE 37 only
- Entrance way opening: 521mm

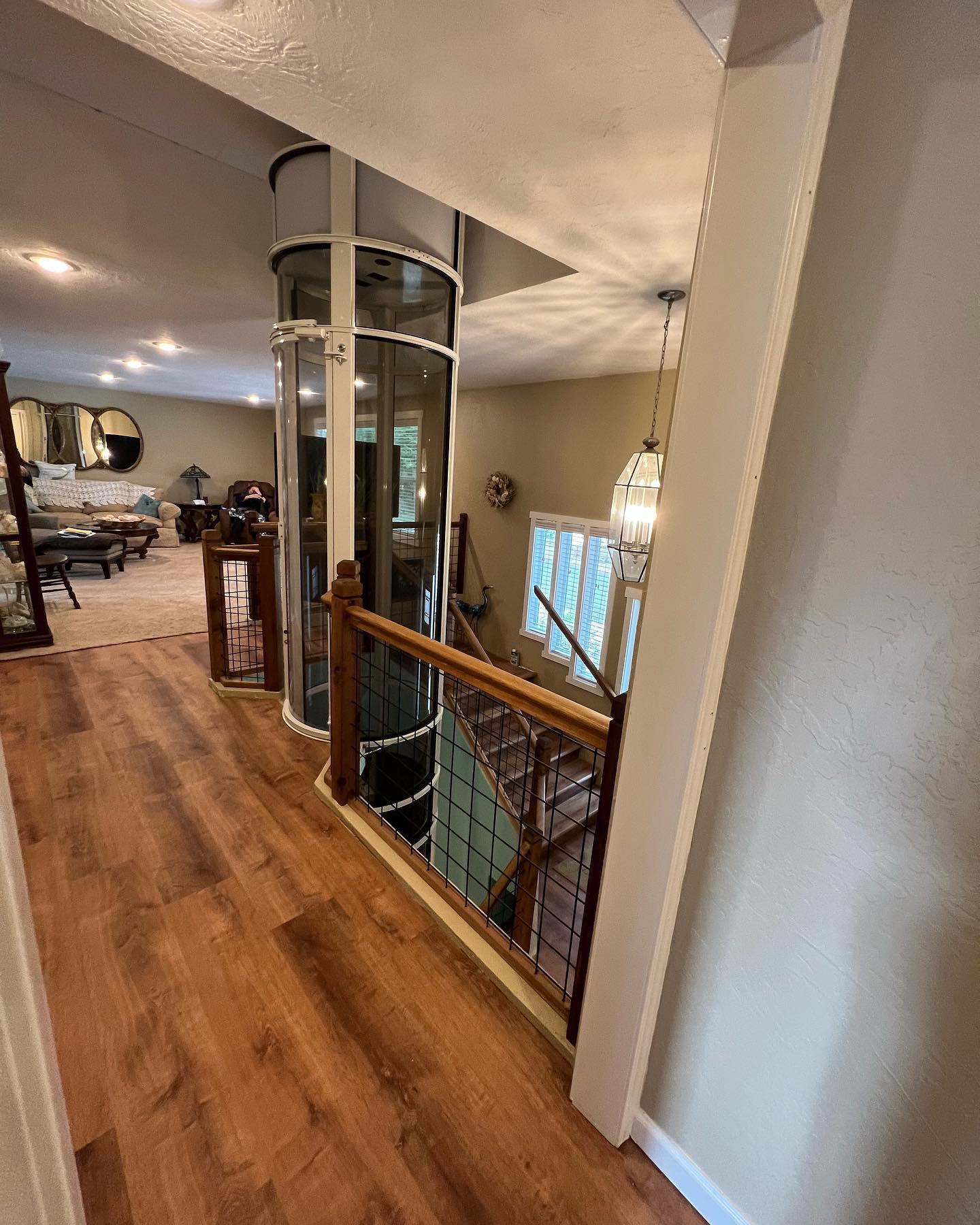

- Through Floor or Balcony Mount Landings
- Power Supply: 25 AMP 220VAC
- In-line door opening
- Aluminum and polycarbonate cylinder structure
- Automatic interior LED lighting and fan
- Mechanical emergency safety brake system
- One year limited manufacturer warranty
ECO-FRIENDLY
As environmentally-friendly home elevators, the only electrical required to power it is 220V, 40 Amp, single phase service.
power outage
Should a power outage occur, the lift safely descends to the lowest level and the mechanical door lock enables the passenger to exit Safely.
NO pIT Required
No Pre-Construction Pit, Hoist Way or Machine Room Required to install any model of PVE elevators.
Maintenance
Any maintenance required is invasive to your daily schedule. The lift needs maintenance once every 5 years, or about 15,000 lifts.
Rather than using cables or pistons, the unique residential elevator is powered by one of the most abundant resources in the world: AIR
Absolute Safety
Thousands of Installations in the USA and Around the Globe
Eco-Friendly System
Cleanest Residential Elevator Technology On The Market
QUICK Installation
To install PVE in house takes 1-3 days
Minimal Maintenance
No Harmful Oils, Gases or Lubricants Utilized For Operation
Wheelchair Accessible

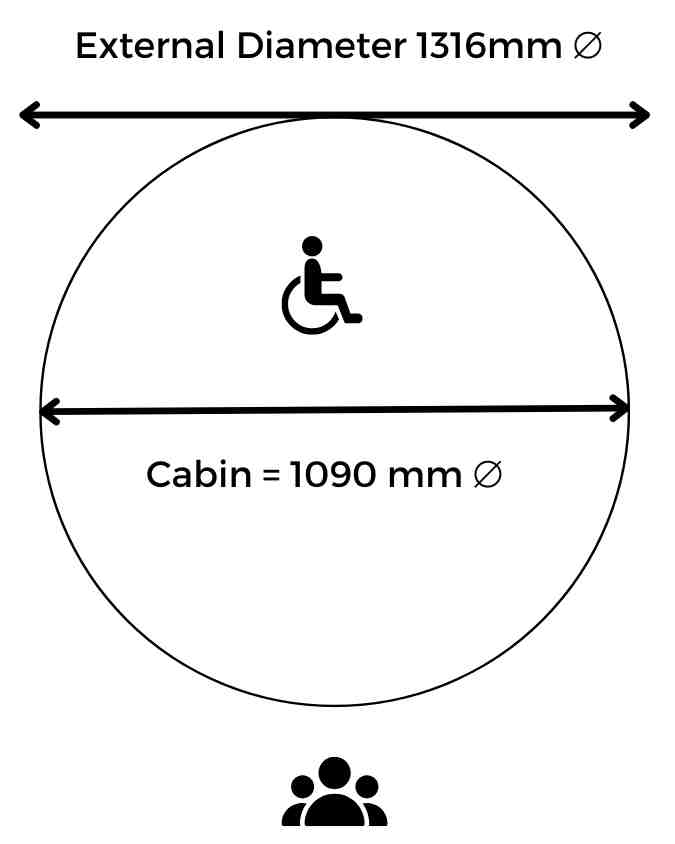

PVE 52 provides enough space for a person in a wheelchair with an attendant or for up to 3 adults
Self Supporting System
Minimal Home Modifications With No Shaft, Pit or Machine Room Require
By Using Pneumatic Technology to Generate Lift, Our Home Elevators Smoothly Move Between Floors While Requiring Much Less Space and Energy Than Traditional Residential Elevators.
