A 4000 | A 5000 Home Lift
The Cibes A5000 is one of the most space-efficient and easy-to-install home lifts in the market.<br>A 4000 is the compact version of A5000
Technical Information
- Installation:Indoor
- Rated load:300 kg
- Power supply:1 × 230 VAC, 50 Hz, 16 A, min. 3 × 2,5 mm², 3 × 230 VAC/3 × 400 VAC, 50 Hz, 16 A, min. 5 × 2,5 mm²
- Speed:Max 0.15 m/s
- Min headroom:2300 mm (full-height door)
- Lift pit:50 mm or 0 mm with access ramp
- Drive system:Screw and nut
- Max travel:20 m
- Max number of stops:6

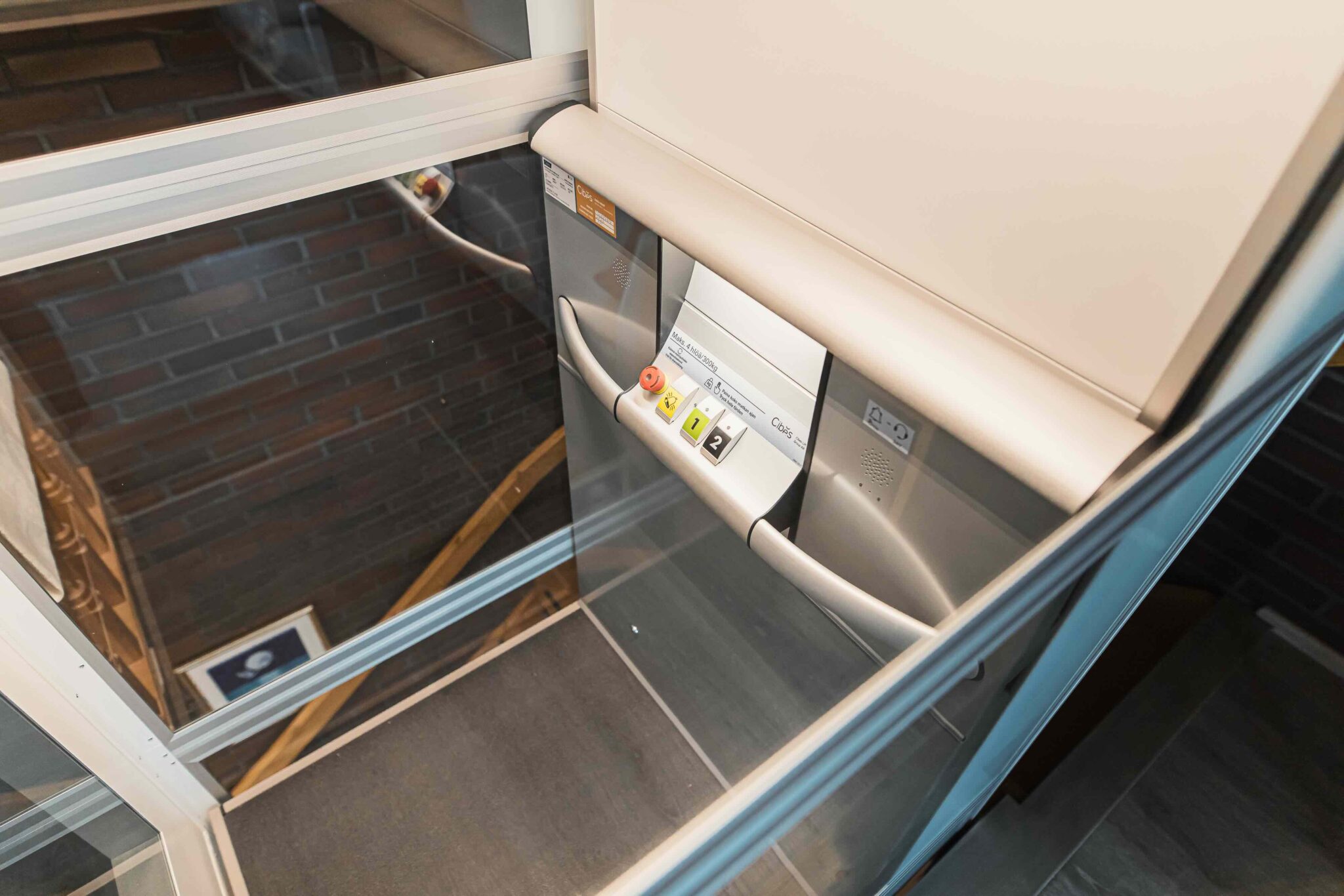

- Lift controls:One touch (automatic drive) on landings, hold-to-run on platform
- Motor Power:2.2 kW
- Machine room:Integrated (MRL)
- Door configuration:Single access, open-through, adjacent
- Directives and standards:MD 2006/42/EC, EN 81-41
Plug & play electrics
All electrics are plug & play and your lift works with standard 1-phase or 3-phase electricity. Lift installation generally does not require any rewiring.
All-inclusive lift concept
The lift is delivered in ready-made modules with everything you need for installation, including a modular lift shaft to reduce construction costs.
Space-efficient lift solution
Because the Cibes A5000 is machine room less and requires no lift pit, nor extra headroom, the lift makes extremely efficient use of your space.
Installation in 2-3 days
Thanks to our ready-made concept and space-saving design it is possible to install your platform lift very fast. 2-3 days is all we need for a 2-stop lift!
SAFETY & COMFORT

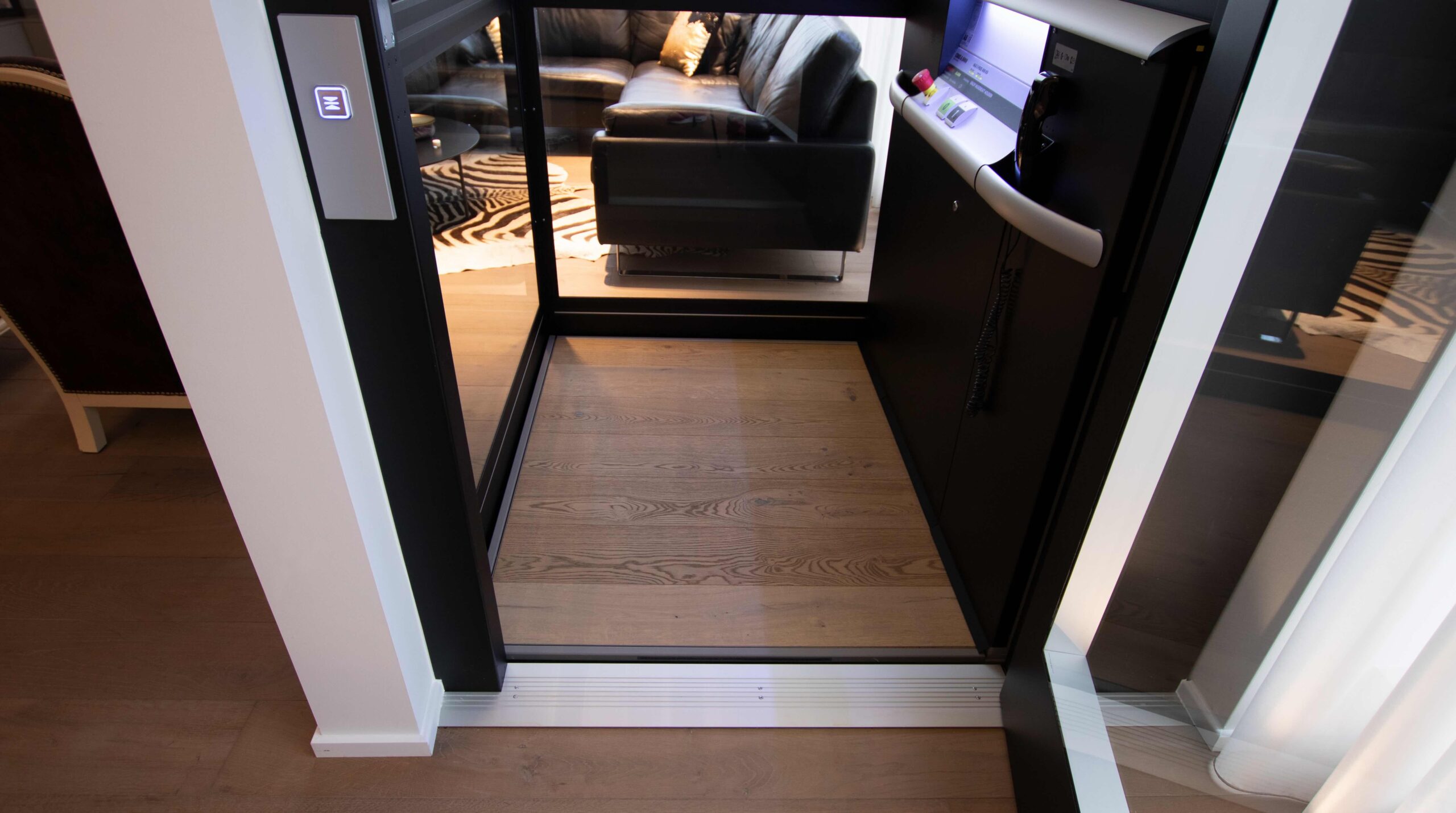

Accessiblity lift Cibes A5000
One of the most important things when buying a passenger lift is choosing the right platform size. The standard sizes (1000×1467 and 1100×1467 mm) are suitable for wheelchairs, walkers and prams, while the largest size (1000×1967 mm) is big enough for most mobility scooters.

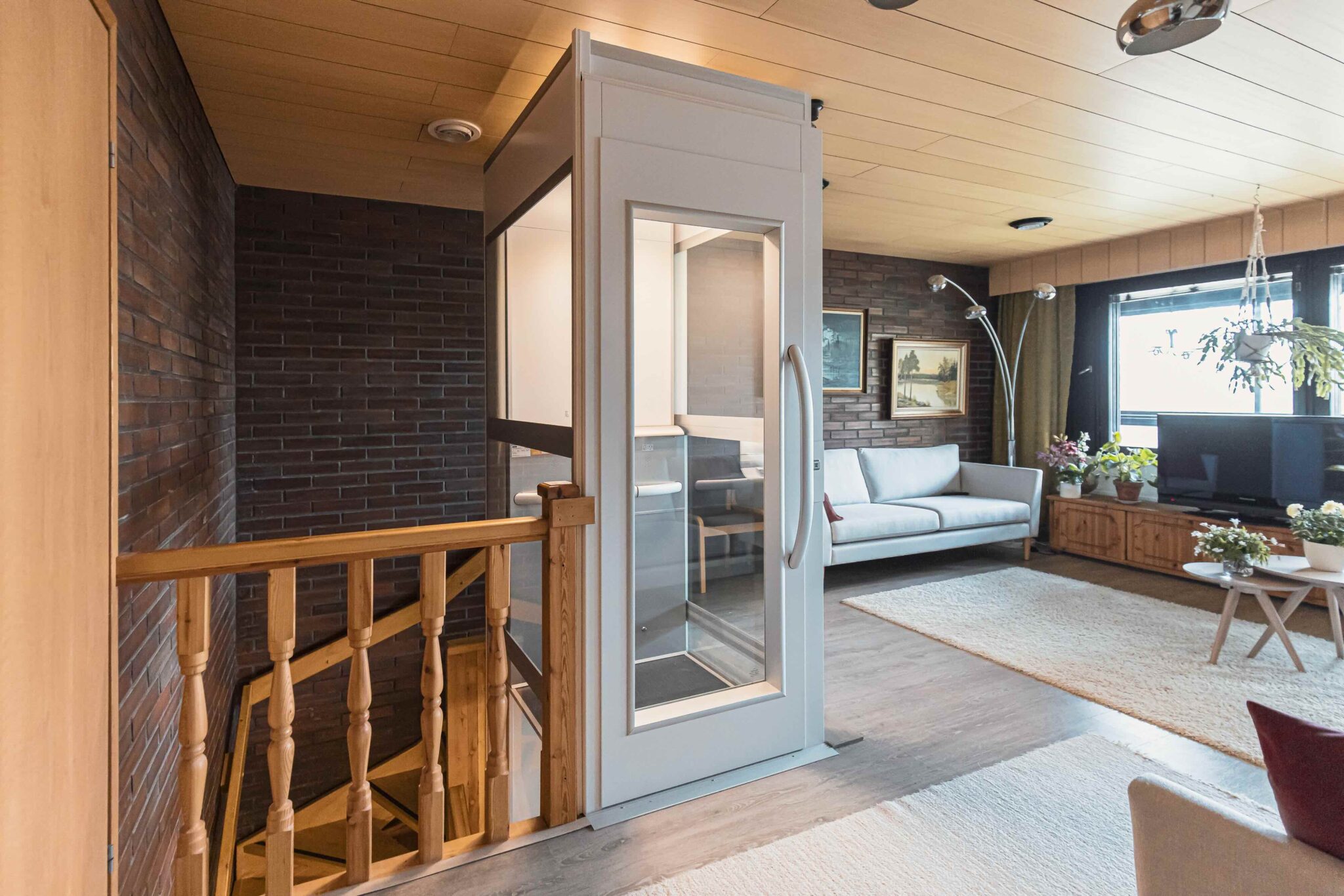

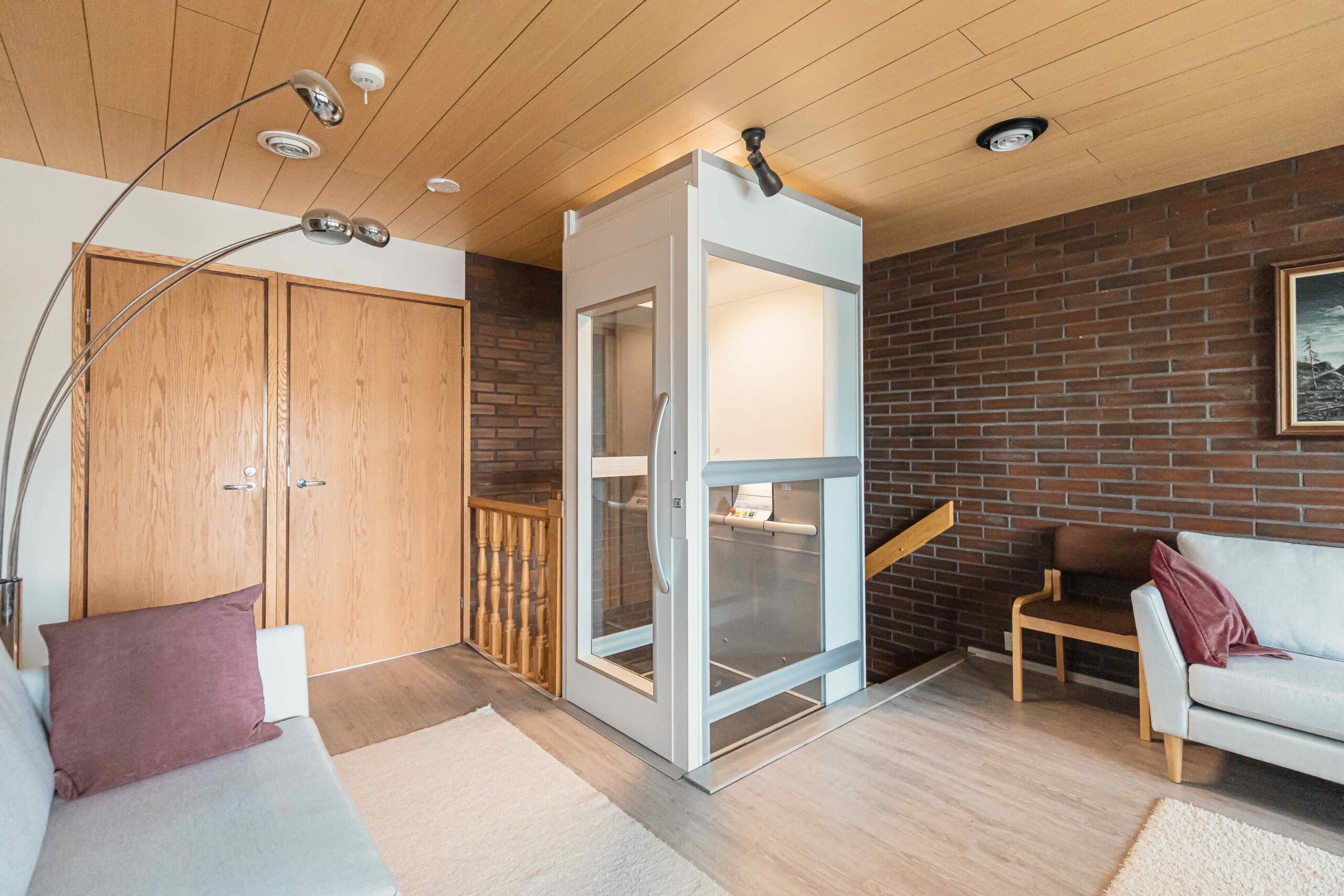

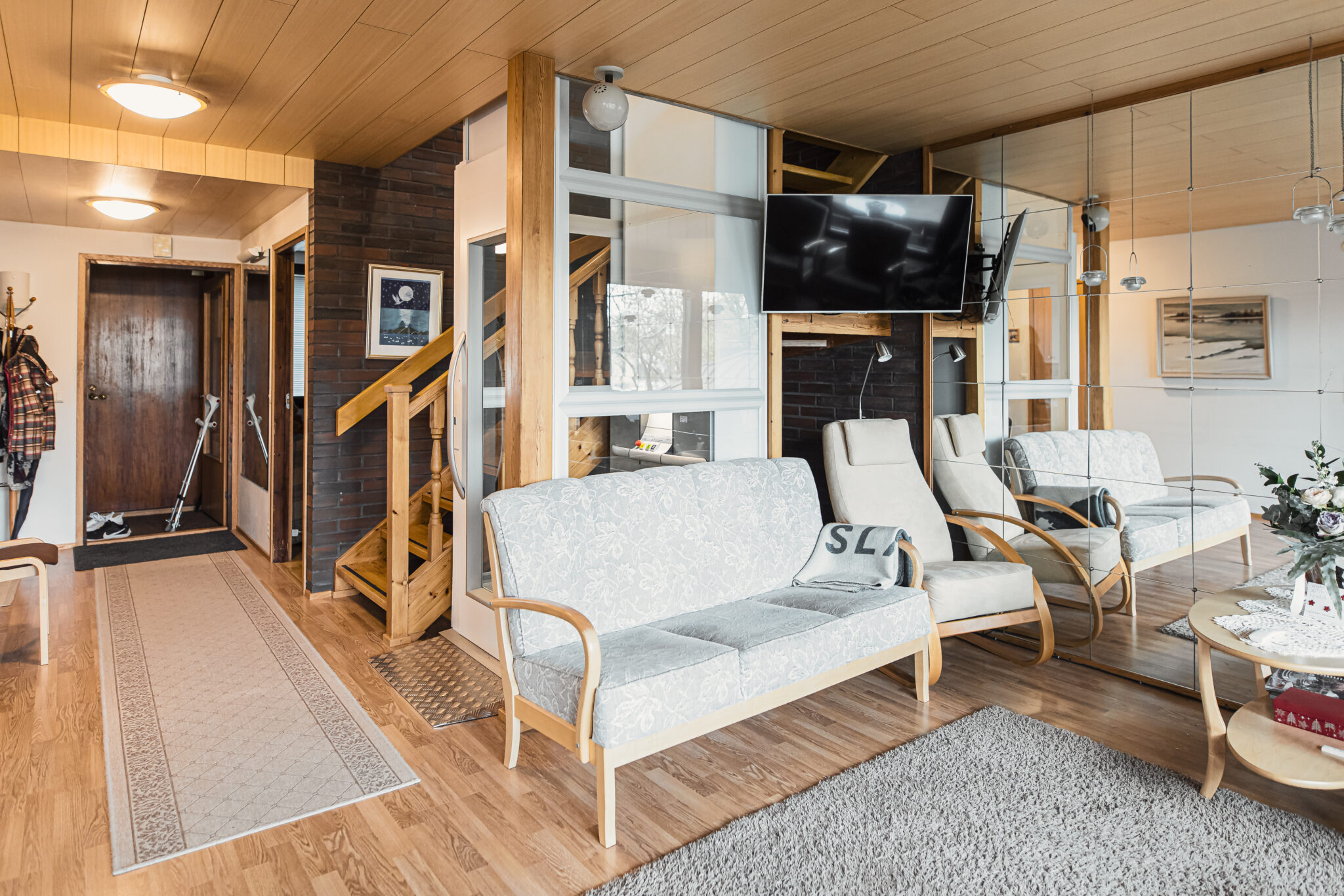

All you need is A4000
The smallest size of the Cibes A4000 fits in just 1m2, which is about the same size as a wardrobe. While this lift is too small for wheelchair users, the biggest sizes, 1000 x 930 and 1100 x 930 mm, are suitable for passengers using walkers.
Gate on the top floor
Our residential lifts are designed to adapt to your home, not the other way around. For example, if you have a sloped ceiling on the top floor, the lift may not fit under it. One solution is to adapt the top of the lift shaft to the sloped ceiling. Another smart and space-efficient solution is to opt for a 1.1-m-high gate.*

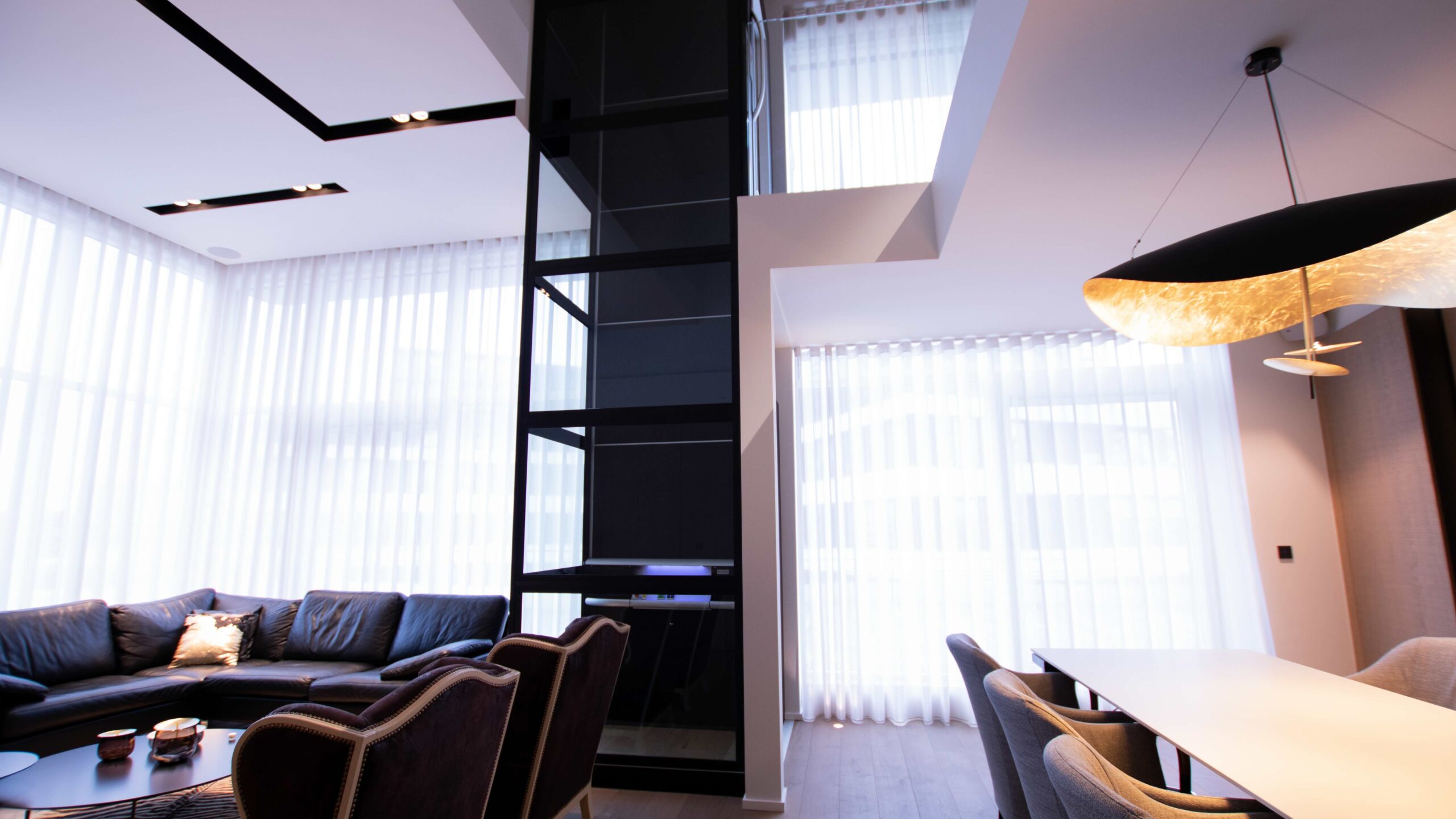

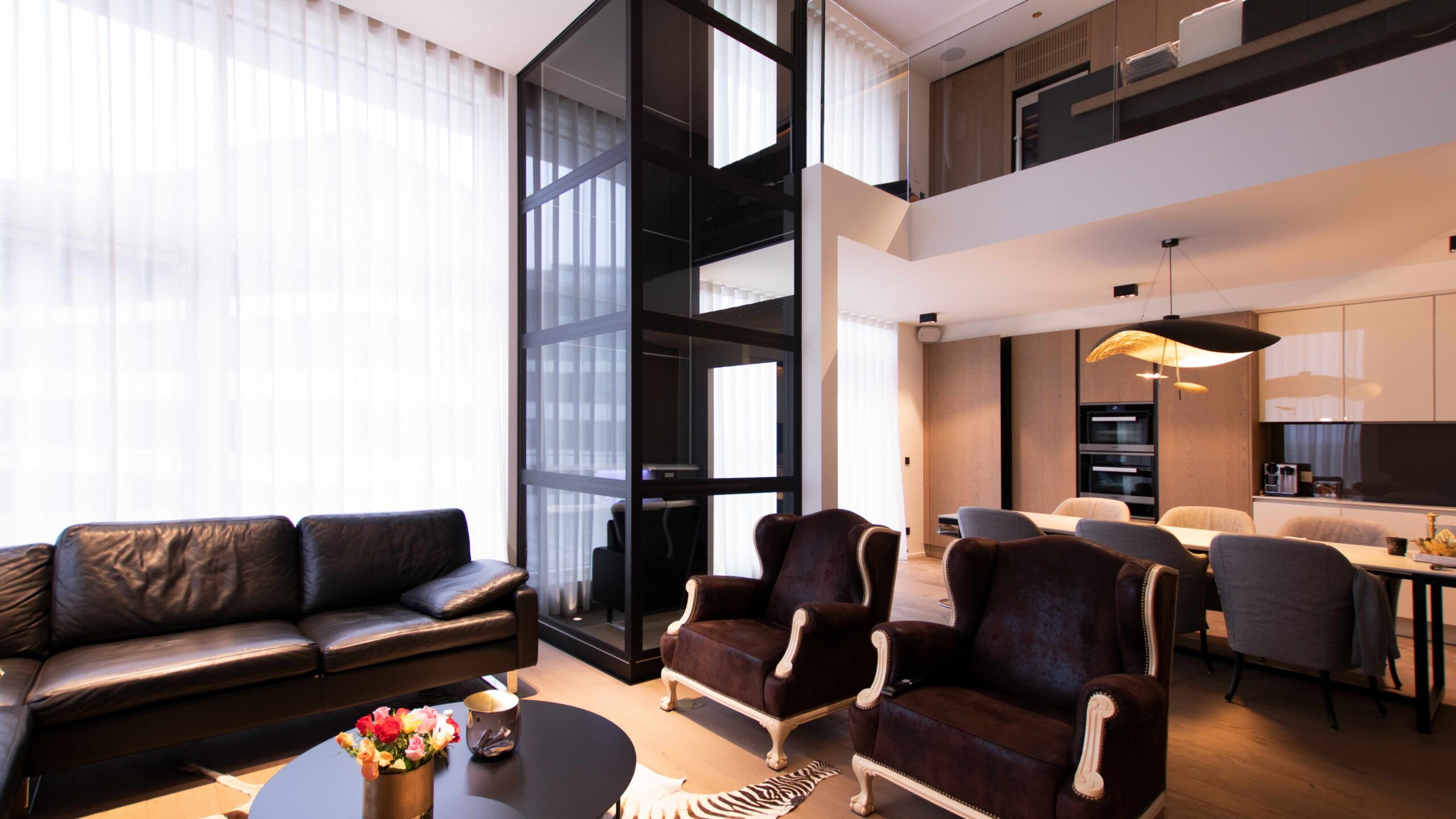

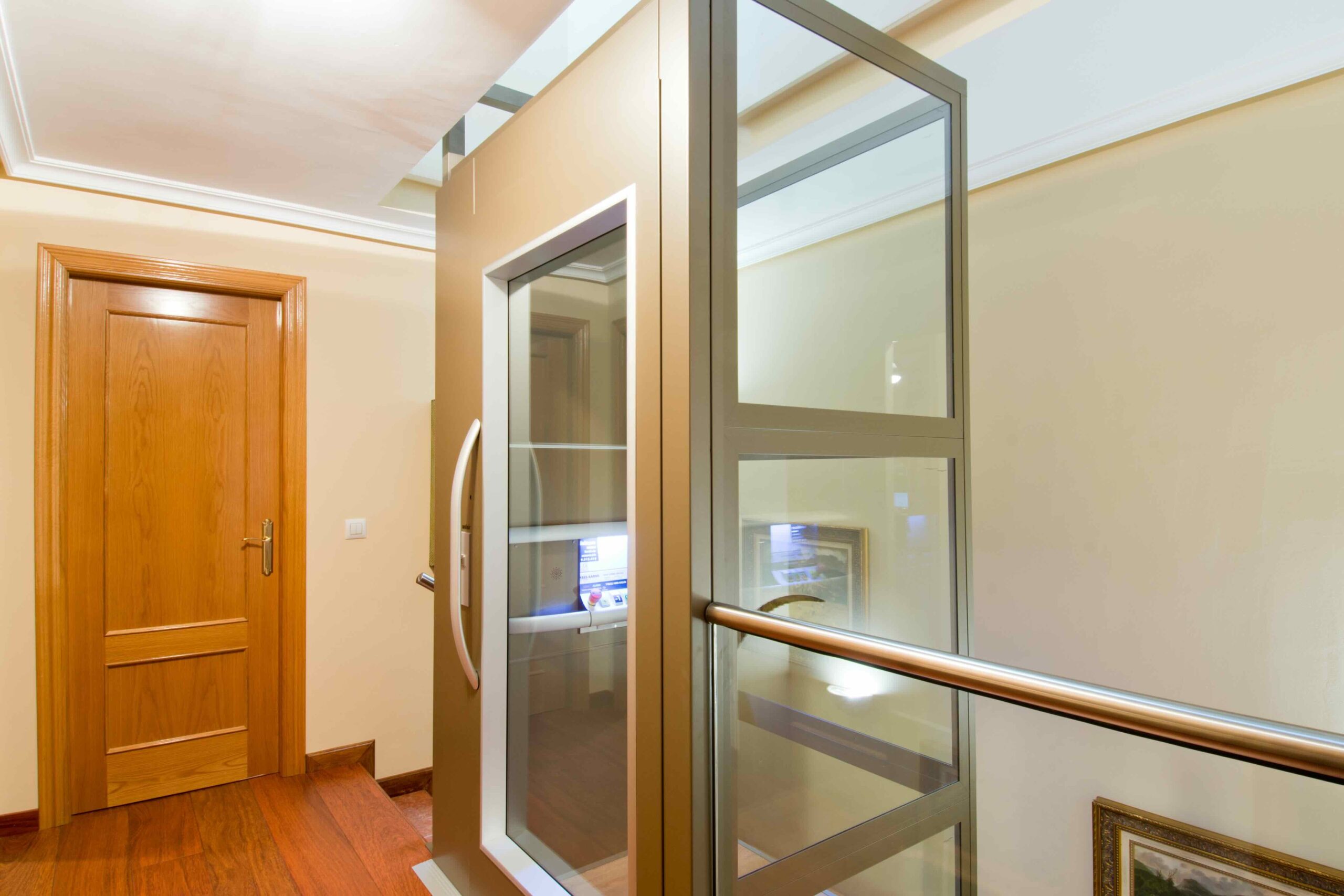

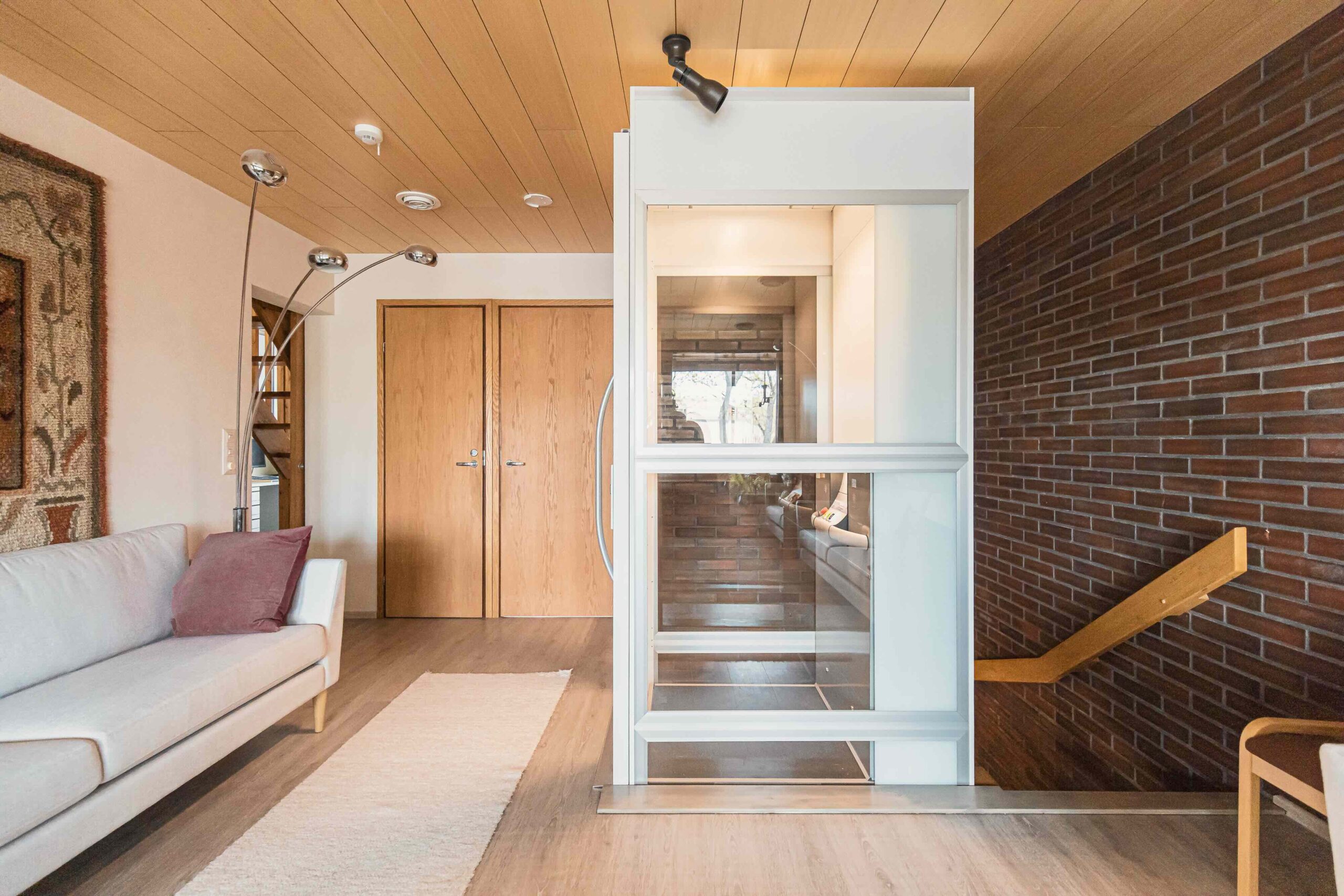

Panoramic glazing

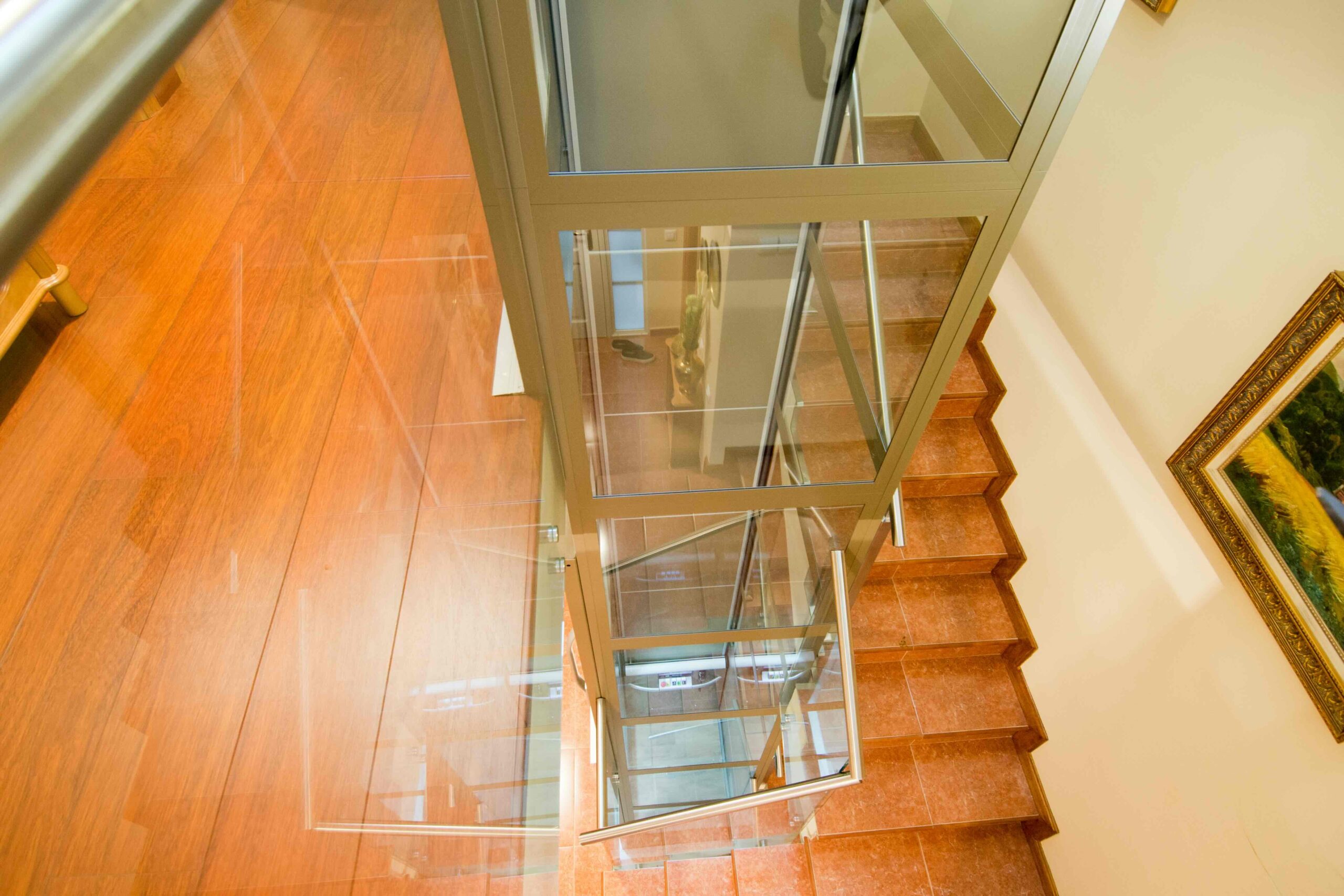

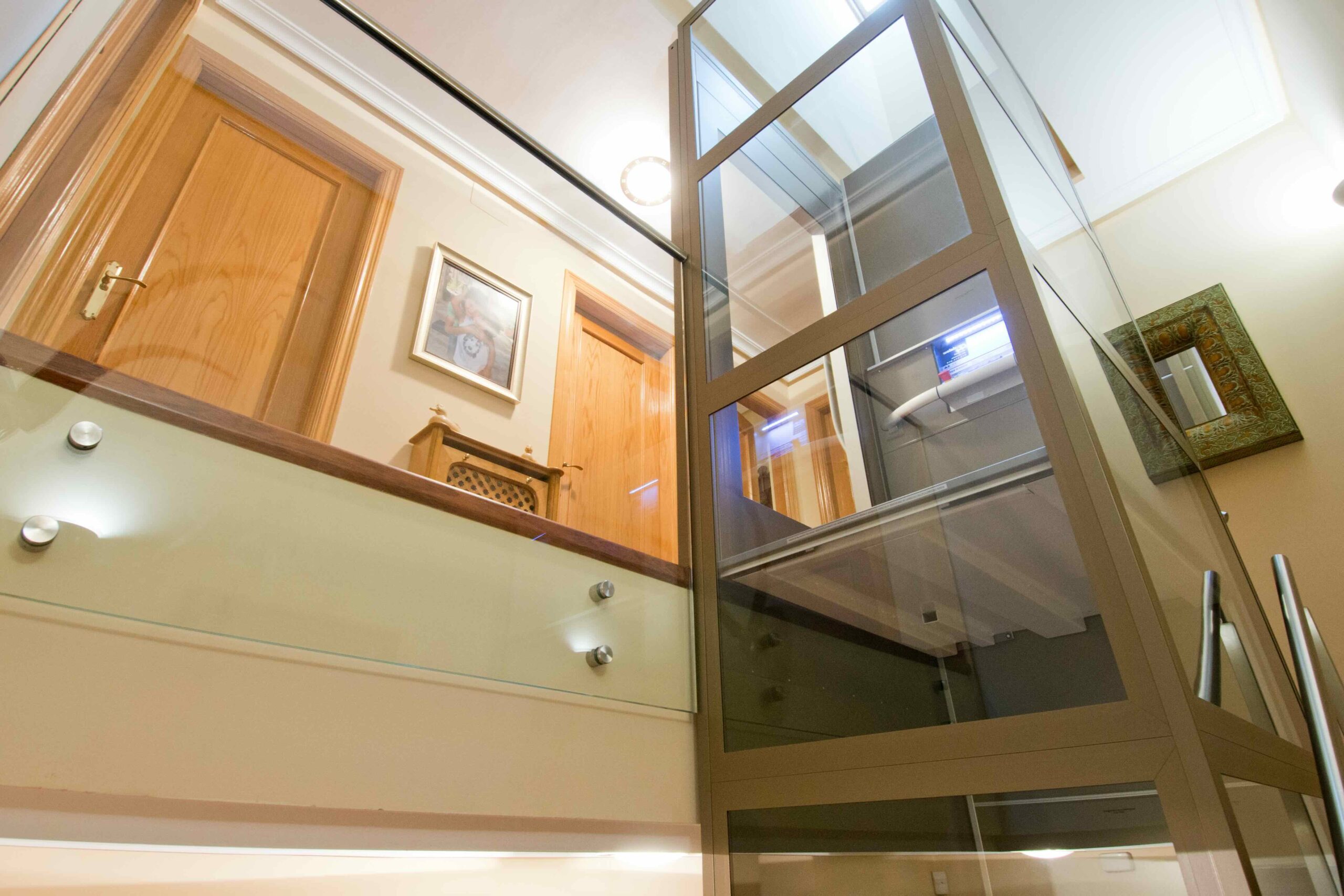

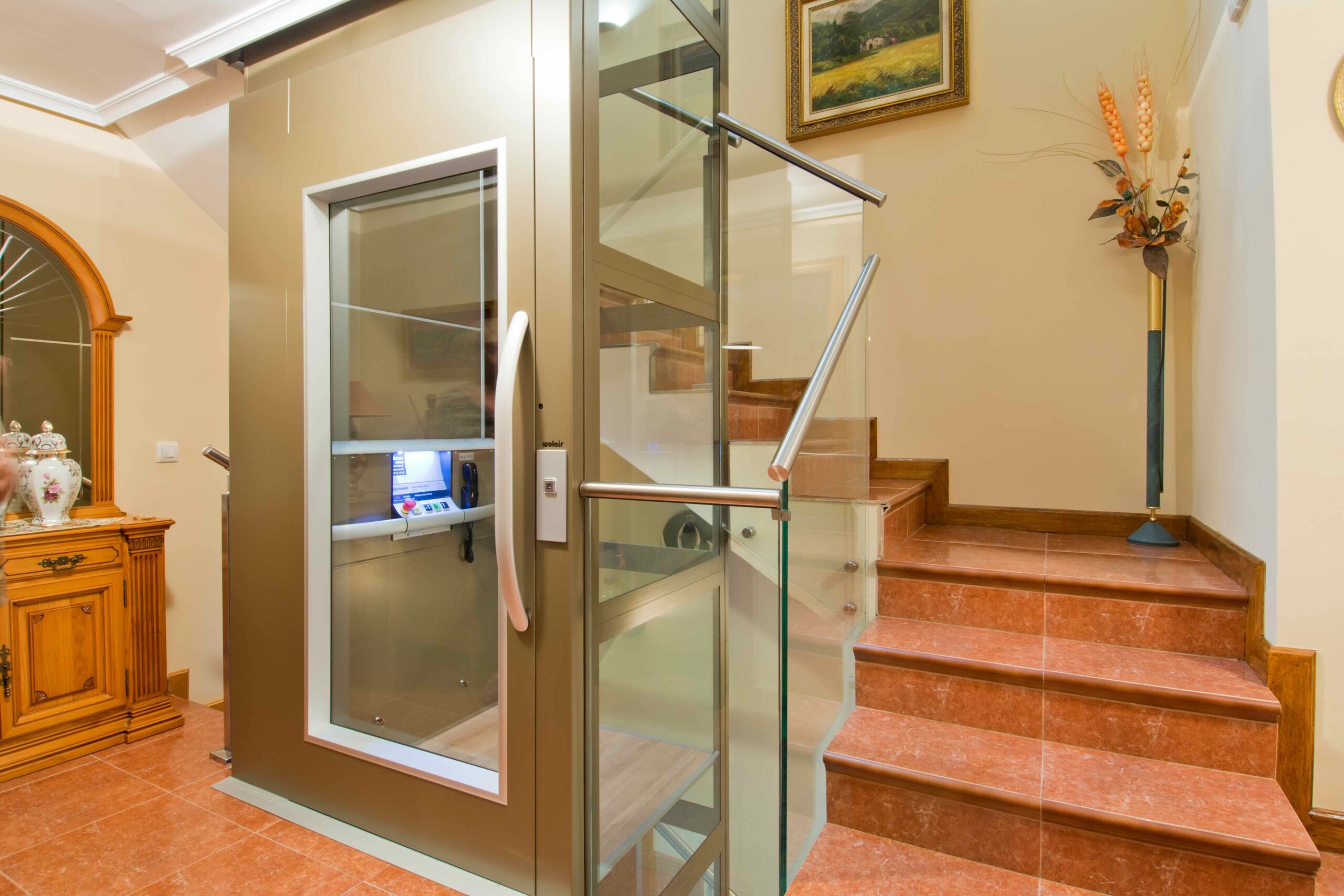

The lift shaft of the Cibes A4000 is available with panoramic glazing on all sides, including the machinery side. Glazing looks fantastic and makes the room feel open and airy. It also makes the most of the light in dark spaces, such as stairwells.

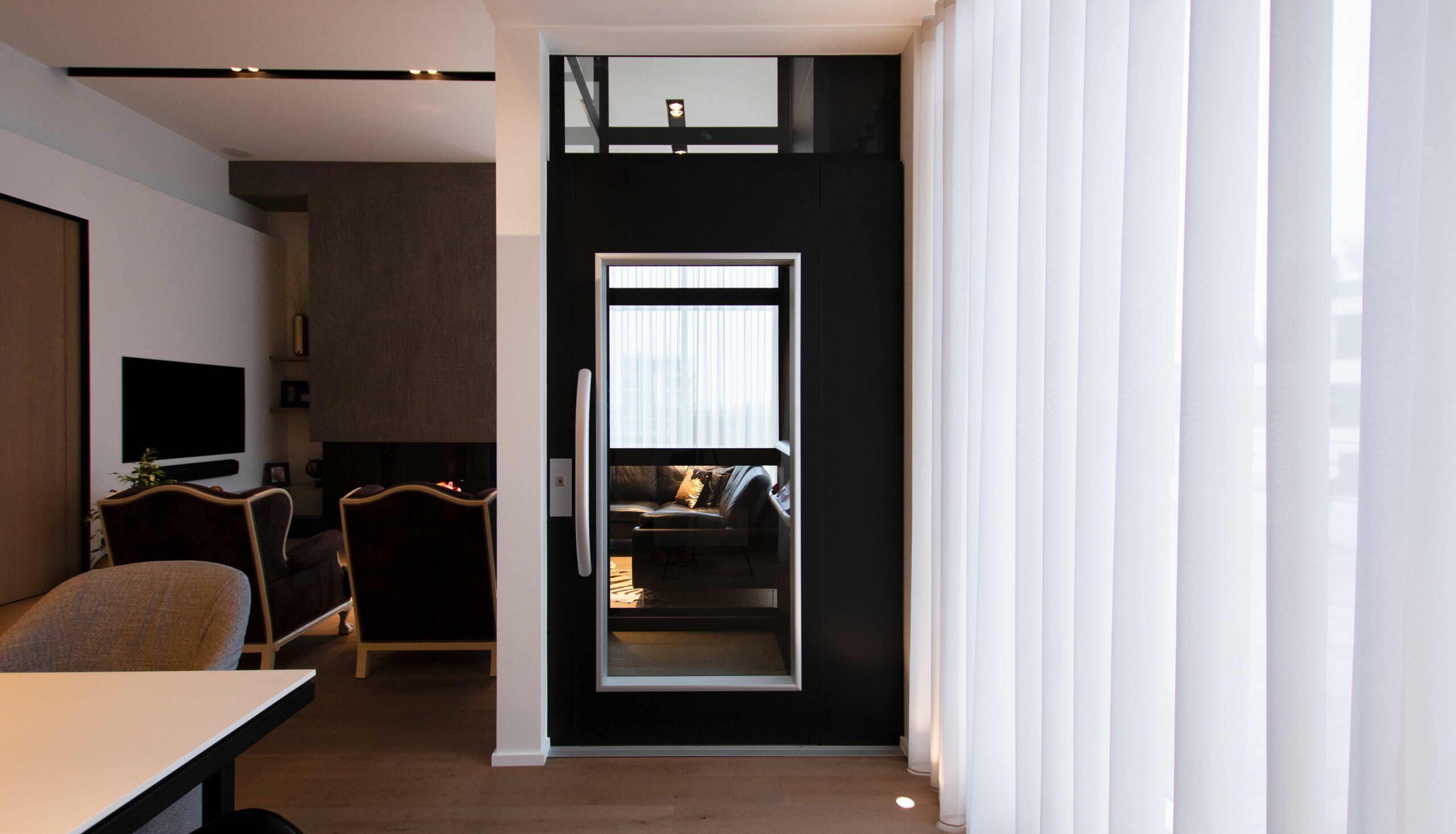

Lift in a concrete shaftway
Installing your lift inside a concrete or masonry shaft makes it blend in seamlessly into your interior. The Cibes A4000 is also a great option if you are looking to replace your old elevator with a new and space-efficient lift solution.
EcoSilent drive
The EcoSilent drive system makes lift operation 45% more energy-efficient and virtually soundless. Equipped with our optional drive system, the lift generates a sound of only 40 dB*, low enough to blend in with the background noises of a quiet library.
PREMIUM SPECIFICATIONS
Machine room less
To take up as little space as possible, the screw-driven machinery and electrics fit inside the double wall behind the passenger platform.
No lift pit needed
To reduce your building costs, the Cibes A5000 can be installed directly on the floor with an access ramp, or with a floor recess of just 5 centimetres.
Low headroom
While conventional elevators need a lot of headroom on the top floor, a Cibes A5000 with standard doors only requires a headroom of 2.3 metres.
Recyclable lift
At Cibes, we are committed to reducing the impact that our products have on the planet and recyclability is an important factor. Our Cibes A5000 has a calculated lifetime of 25 years* and is recyclable to 91%.
